    Astronergy 5S CHSM54M(BL)-HC Solar Module Eff. 20.7% 390w 395w 400w 405w House Solar Panels

    Ask Lasest Price
    Brand Name : ASTRO 5S CHSM54M(BL)-HC
    Model Number : CHSM54M(BL)-HC
    Certification : CGC,ISO9001:2015,TUV SUD,PV,CNAS,
    Price : $90~116/Pcs
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200000 Watt/Watts per Week
    Delivery Time : To be negotiated
    • Product Details
    • Company Profile

    Astronergy 5S CHSM54M(BL)-HC Solar Module Eff. 20.7% 390w 395w 400w 405w House Solar Panels

    Solar panels ASTRO 5S BL 390W~405W

    Power range:390W~405W
    Max. system voltage:1000 VDC
    Dimension:1722 x 1134 x 30 mm
    Frame thickness:30 mm
    Glass thickness:3.2 mm
    Cable length:300 mm х 1200 mm

    Specification

    PERC+ / Multi-busbar / Half-cut
    Non-destructive cutting
    PID resistance

    Certification

    ISO 9001, ISO 14001, ISO 45001
    First solar company which passed the TUV Nord IEC/TS 62941 certification audit

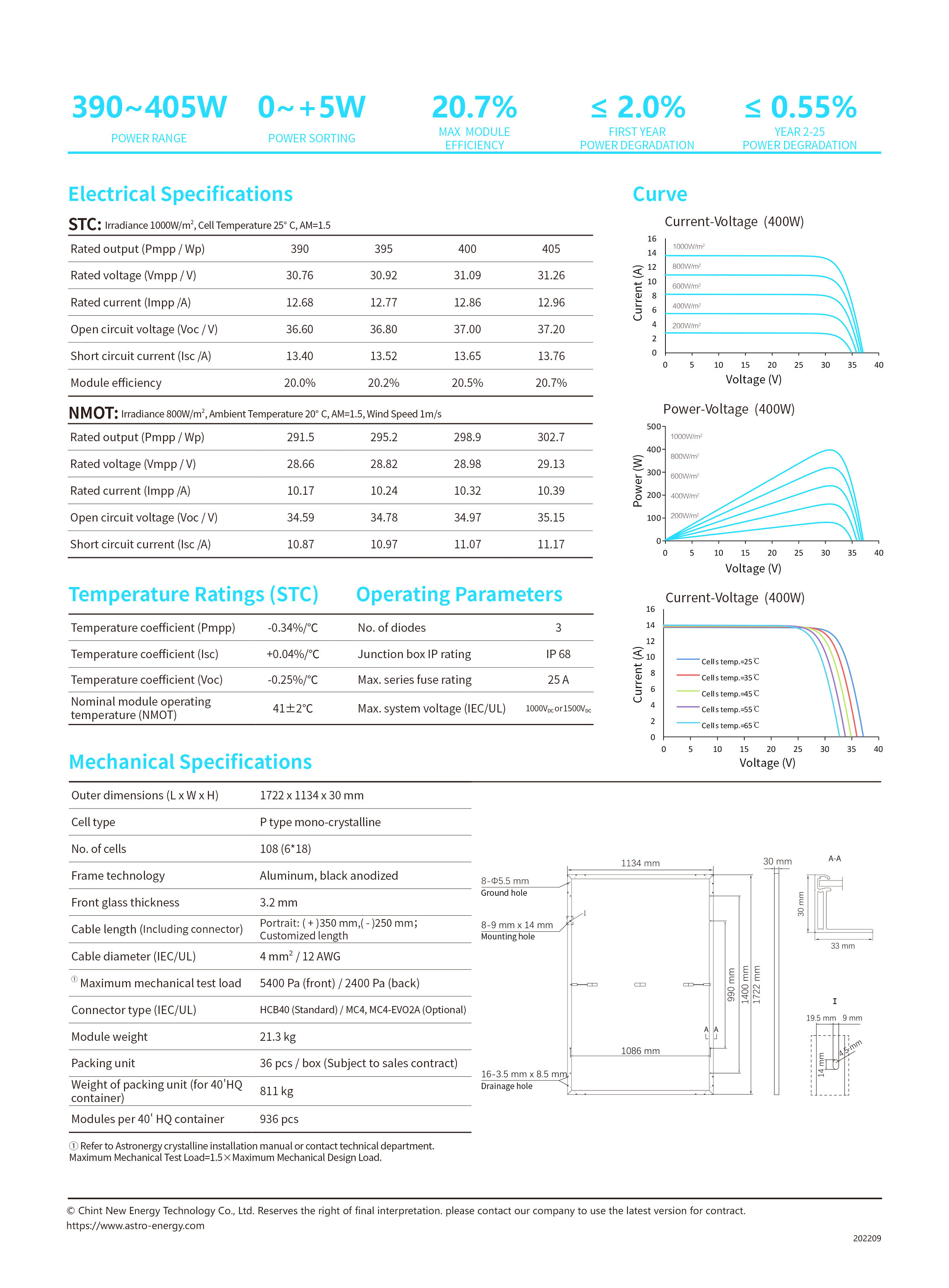

    Mechanical Specifications
    Outer dimensions (L x W x H)
    1722 x 1134 x 30 mm
    Cell type
    P type mono-crystalline
    No. of cells
    108 (6*18)
    Frame technology
    Aluminum, black anodized
    Front glass thickness
    3.2 mm
    Cable length (Including connector)
    Portrait: ( + )350 mm,( - )250 mm; Customized length
    Cable diameter (IEC/UL)
    4 mm² / 12 AWG
    ① Maximum mechanical test load
    5400 Pa (front) / 2400 Pa (back)
    Connector type
    (IEC/UL)
    HCB40 (Standard) / MC4, MC4-EVO2A (Optional)
    Module weight
    21.3 kg
    Packing unit
    36 pcs / box (Subject to sales contract)
    Weight of packing unit (for 40'HQ
    container)
    811 kg
    Modules per 40' HQ container
    936 pcs

    Astronergy 5S CHSM54M(BL)-HC Solar Module Eff. 20.7% 390w 395w 400w 405w House Solar PanelsAstronergy 5S CHSM54M(BL)-HC Solar Module Eff. 20.7% 390w 395w 400w 405w House Solar PanelsAstronergy 5S CHSM54M(BL)-HC Solar Module Eff. 20.7% 390w 395w 400w 405w House Solar PanelsAstronergy 5S CHSM54M(BL)-HC Solar Module Eff. 20.7% 390w 395w 400w 405w House Solar Panels



    X New Energy Technology (Changzhou) Co., Ltd established in 2015, is a sales company dedicated to cells, photovoltaic modules, inverters, energy storage batteries, and solar power generation systems with an office area of 500 square meters and a warehouse area 5000 square meters located in Changzhou City, the green capital of new energy in Jiangsu, close to Shanghai and facing the world, with convenient transportation and pleasant environment.
    X New Energy has been rooted in the photovoltaic industry for nearly ten years and is committed to providing customers with high-quality products and services.
    We have complete industrial chain resources, employees, and good relationships with suppliers and customers. In mainland China, the annual sales volume of modules alone has reached 300MW+.
    At the moment when the whole world is moving towards the goal of zero-carbon emissions, Akers will go out of China and go to the world to contribute its corporate energy to the world's zero-carbon plan Bring more and better photovoltaic products to every corner of the world that needs them Energy saving, environmental protection, and high Efficient pursuit of product development.
    Green, clean, and peaceful are our expectations of the future of the world.
    While selling products, we are willing to meet more friends from various countries and go both ways for the same goal and belief.


    FAQ
    Q:Are you a factory or a trading company?
    A:We are a professional Solar Panels Manufacturer in China
    Q:How can we guarantee the products quality?
    A:Always provide the esteemed buyer a pre-production sample before mass production; Always testing every product before despatching the shipments;
    Q:What products we can supply you?
    A:Solar Panel,Inverter,Mounting System,Battery,Pv Cable,Distributor Box,Pv Connector,Etc

    Q:Can the products pricing be cheaper?
    A:Of course, you will be offered a a very good discount with large quantities.
    Q: Can print our company‘s logo on the pv panels?
    A:Yes! And we accept the OEM&ODM orders.
