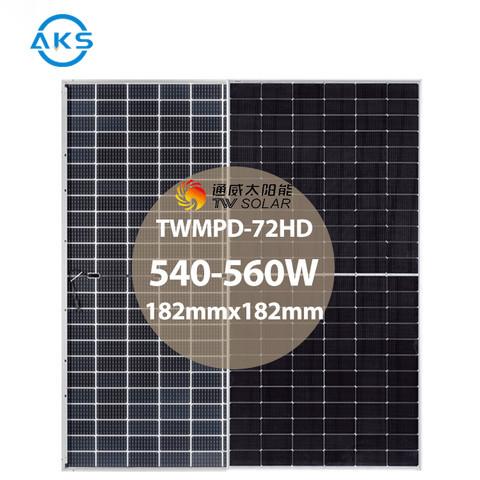

    555W 560W TW Solar Panel 540W 545W 550W Dual Glass Solar Panels 144 Half Cells

    Ask Lasest Price
    Brand Name : 415W TW SOLAR
    Model Number : TWMPD-72HD
    Price : To be negotiated
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200000 Watt/Watts per Week
    Delivery Time : To be negotiated
    Certification : CGC,ISO9001:2015,TUV SUD,PV,CNAS,
    • Product Details
    • Company Profile

    555W 560W TW Solar Panel 540W 545W 550W Dual Glass Solar Panels 144 Half Cells

    TW Solar Panel 540W 545W 550W 555W 560W P-Type 144 Half Cells Module Bifacial Dual Glass Solar Pv Panels


    One of the key features of monocrystalline solar panels is their high purity. The single crystal structure used in their manufacturing process allows for fewer impurities and defects compared to other types of solar panels, such as polycrystalline or thin-film panels. This high purity contributes to their increased efficiency, enabling monocrystalline solar panels to produce more power per square foot. This makes them an ideal choice for homeowners or businesses with limited space, or for those who want to maximize their energy production with fewer panels.


    Model No.72HD54072HD54572HD55072HD55572HD560
    Product Warranty12 Years
    Power Warranty30 Years of 84.95% Output Power
    Electrical Data at STC
    Maximum Power (Pmax)540 Wp545 Wp550 Wp555 Wp560 Wp
    Voltage at Maximum Power (Vmpp)41.56 V41.76 V41.96 V42.16 V42.36 V
    Current at Maximum Power (Impp)13 A13.05 A13.11 A13.17 A13.23 A
    Open Circuit Voltage (Voc)49.7 V49.9 V50.1 V50.3 V50.5 V
    Short Circuit Current (Isc)13.78 A13.83 A13.88 A13.93 A13.98 A
    Panel Efficiency20.90%21.10%21.30%21.50%21.70%
    Power Tolerance (Positive)1%1%1%1%1%
    Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C
    Electrical Data at NOCT
    Maximum Power (Pmax)408.6 Wp412.4 Wp416.2 Wp420 Wp423.8 Wp
    Voltage at Maximum Power (Vmpp)38.45 V38.67 V38.9 V39.12 V39.31 V
    Current at Maximum Power (Impp)10.62 A10.66 A10.7 A10.74 A10.79 A
    Open Circuit Voltage (Voc)46.48 V46.74 V47.01 V47.28 V47.47 V
    Short Circuit Current (Isc)11.04 A11.08 A11.12 A11.16 A11.2 A
    Temperature45±2 °C
    Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C
    Thermal Ratings
    Operating Temperature Range40~85 °C
    Temperature Coefficient of Pmax0.34 %/°C
    Temperature Coefficient of Voc0.28 %/°C
    Temperature Coefficient of Isc0.05 %/°C
    Maximum Ratings
    Maximum System Voltage1500 V
    Series Fuse Rating30 A
    Material Data
    Panel Dimension (H/W/D)2278x1134x30 mm
    Weight32.7 kg
    Cell TypeBifacial
    Cell Number144
    Glass TypeAnti-reflection Coating, Tempered
    Glass Thickness3.2 mm
    Frame TypeAnodized Aluminium Alloy
    Junction Box Diodes3
    Junction Box Protection ClassIP 68
    Cable Crossection4 mm2


    FAQ
    Q:Are you a factory or a trading company?
    A:We are a professional Solar Panels Manufacturer in China
    Q:How can we guarantee the products quality?
    A:Always provide the esteemed buyer a pre-production sample before mass production; Always testing every product before despatching the shipments;
    Q:What products we can supply you?
    A:Solar Panel,Inverter,Mounting System,Battery,Pv Cable,Distributor Box,Pv Connector,Etc

    Q:Can the products pricing be cheaper?
    A:Of course, you will be offered a a very good discount with large quantities.
    Q: Can print our company‘s logo on the pv panels?
    A:Yes! And we accept the OEM&ODM orders.
