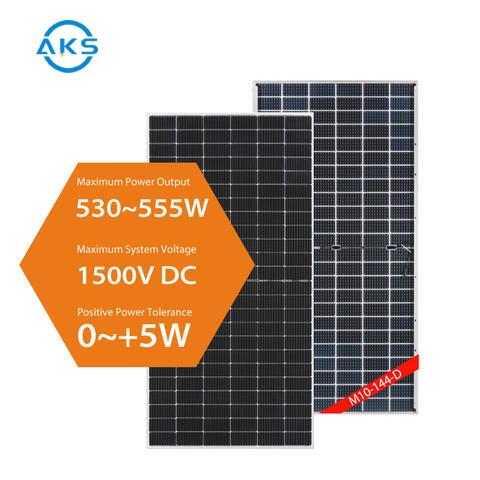

    555W TW Solar Panels 530W 535W 540W 545W 550W Mono Perc Half Cut

    Ask Lasest Price
    Brand Name : 415W TW SOLAR
    Model Number : M10-144-D
    Price : To be negotiated
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200000 Watt/Watts per Week
    Delivery Time : To be negotiated
    Certification : CGC,ISO9001:2015,TUV SUD,PV,CNAS,
    • Product Details
    • Company Profile

    555W TW Solar Panels 530W 535W 540W 545W 550W Mono Perc Half Cut

    TW Solar 530W 535W 540W 545W 550W 555W Baterias Para Paneles Solares Best Home Use Solar Panels


    Monocrystalline solar panels have excellent performance in low light conditions, making them a great choice for regions with less sunlight or cloudy weather. The high efficiency of these panels allows them to generate power even when sunlight is not at its peak, ensuring consistent energy production throughout the day. This advantage makes monocrystalline solar panels a reliable energy source for those who live in areas with variable weather conditions or limited sunlight hours.


    Electrical Characteristics (STC)
    Module type: TW***MBAP-144-D
    Maximum power: Pm (W)535540545550555560
    Open clrcu ft voltage: Voc (V)49.549.749.9050.1050.3050.50
    Short circuit current Isc (A)13.7313.7813.8313.8813.9313.98
    Voltage at maximum power point: Vm (V)41.3641.5641.7641.9642.1642.36
    Current at maximum power point Im (A)12.941313.0513.1113.1613.23
    Module efficiency T] (%)20720.921.121.121.521.7
    STC: Irradiance lOODW/nf, Cell Temperature 25t, Air Massl .5, Measuring tolerance: ±3%

    Electrical Characteristics (NMO10
    Maximum power: Pm (W)404.8408.6412.44162420.0423.1
    Open circuit voltage: Voc (V)46.2146.4846.7447.0147.2847.34
    Short circuit current Isc (A)1111.0411.0811.1211.1611.20
    Voltage at maximum power point: Vm (V)38.2338,4538.6738.9039,1239,25
    Current at maximum power point Im (A)10.5810.6210.6610.7010.7410.78
    NMOT: Irradiance 800W/m2, Ambient Temperature 20 aC, AM=1.5, Wind Speed 1m/s

    Electrical characteristics with different power bin(refer»nce to different Irradianm ratio)
    s. Maximum power Pm (W) 5%561.8567572.3577.5582.8588.0
    Module efficiency: v (%)21.721.922222.422.622.8
    [5% Maximum power Pm (W)615.3621626.86325638.3644.0
    Module efficiency v (%)23.824024324,5247249
    Maximum power Pm (W)668.8675681.3687.5693.8700.0
    Module efficiency: T] (%)25.926.126.426.626.927.1

    Mechanical Parameter
    CellsP4PC
    Orientation144(6x24)
    Size2278±2xll34±2x30mm
    Weight32.7kg
    Front Glass2.0mm AR coated heat strengthened glass
    Rear Glass2.0mm heat strengthened glass
    FrameAnodized aluminum alloy frame
    Junction BoxIP68r 3 diodes
    Cable 4.0mm2, Positive; 280mm, Negrth/e: 280mm, length can be customized
    ConnectorMC4 Compatible or MC4 original
    Wind/Snow Load2400Pa/5^00Pa
    Packaging36pcs per pallet, 720pcs per 40'HC

    Operating Parameters
    Operational Temperature-40.+85℃
    Maximum System Voltage1500V DC
    Maximum Series Fuse Rating30A
    Power Output Tolerancec-+5W
    Bifeciality70±5%
    Temperature Ratings
    Temperature Coefficient (Pmax)0.35%TC
    Temperature Coefficient (Voc)-028VC
    Temperature Coefficient (Isc)±0.05%/°C
    NMOT45±2°C


    FAQ
    Q:Are you a factory or a trading company?
    A:We are a professional Solar Panels Manufacturer in China
    Q:How can we guarantee the products quality?
    A:Always provide the esteemed buyer a pre-production sample before mass production; Always testing every product before despatching the shipments;
    Q:What products we can supply you?
    A:Solar Panel,Inverter,Mounting System,Battery,Pv Cable,Distributor Box,Pv Connector,Etc

    Q:Can the products pricing be cheaper?
    A:Of course, you will be offered a a very good discount with large quantities.
    Q: Can print our company‘s logo on the pv panels?
    A:Yes! And we accept the OEM&ODM orders.
