| Model Number : | TSM-DE20 |
| Price : | To be negotiated |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 200000 Watt/Watts per Week |
| Delivery Time : | To be negotiated |
| Brand Name : | TSM-DE20 |
| Certification : | CGC，ISO9001:2015，TUV SUD，PV，CNAS， |
The manufacturing process for mono facial solar panels involves slicing cylindrical silicon ingots into thin wafers, which are then treated and assembled into solar cells. These cells are interconnected and encapsulated within a protective frame to create the final solar panel product.

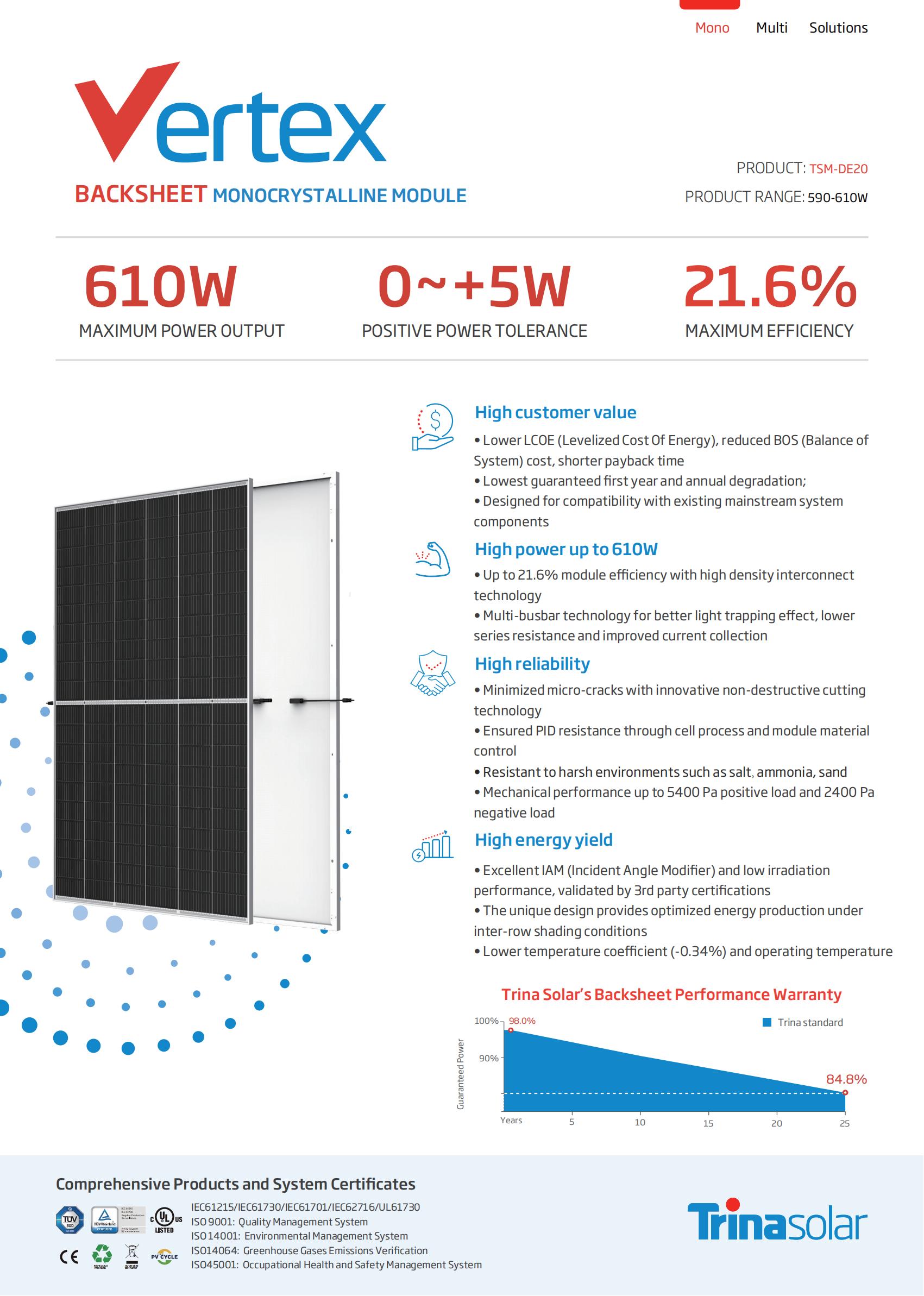

Based on the 210mm large-size silicon wafer and monocrystalline
PERC cell, the Vertex comes with several innovative design features
allowing high power output of more than 600W. Excellent temperature
coefficient and low irradiation performance brings the greater
power. Furthermore, benefit from square mono cells and high-density
encapsulation technology, the efficiency of Vertex can reach up to
21.4%.
| Model No. | 590 | 595 | 600 | 605 | 610 |
| Warranty | |||||
| Product Warranty | 12 Years | ||||
| Power Warranty | 25 Years of 84.8% Output Power | ||||
| Electrical Data at STC | |||||
| Maximum Power (Pmax) | 590 Wp | 595 Wp | 600 Wp | 605 Wp | 610 Wp |
| Voltage at Maximum Power (Vmpp) | 34 V | 34.2 V | 34.4 V | 34.6 V | 34.8 V |
| Current at Maximum Power (Impp) | 17.35 A | 17.4 A | 17.44 A | 17.49 A | 17.53 A |
| Open Circuit Voltage (Voc) | 41.1 V | 41.3 V | 41.5 V | 41.7 V | 41.9 V |
| Short Circuit Current (Isc) | 18.42 A | 18.47 A | 18.52 A | 18.57 A | 18.62 A |
| Panel Efficiency | 20.80% | 21% | 21.20% | 21.40% | 21.60% |
| Power Tolerance (Positive) | 1% | 1% | 1% | 1% | 1% |
| Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C | |||||
| Electrical Data at NOCT | |||||
| Maximum Power (Pmax) | 447 Wp | 451 Wp | 454 Wp | 458 Wp | 461 Wp |
| Voltage at Maximum Power (Vmpp) | 31.7 V | 31.9 V | 32 V | 32.2 V | 32.4 V |
| Current at Maximum Power (Impp) | 14.09 A | 14.13 A | 14.18 A | 14.22 A | 14.25 A |
| Open Circuit Voltage (Voc) | 38.7 V | 38.9 V | 39.1 V | 39.3 V | 39.5 V |
| Short Circuit Current (Isc) | 14.85 A | 14.88 A | 14.92 A | 14.96 A | 15 A |
| Temperature | 43±2 °C | ||||
| Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C | |||||
| Thermal Ratings | |||||
| Operating Temperature Range | 40~85 °C | ||||
| Temperature Coefficient of Pmax | 0.34 %/°C | ||||
| Temperature Coefficient of Voc | 0.25 %/°C | ||||
| Temperature Coefficient of Isc | 0.04 %/°C | ||||
| Maximum Ratings | |||||
| Maximum System Voltage | 1500 V | ||||
| Series Fuse Rating | 30 A | ||||
| Material Data | |||||
| Panel Dimension (H/W/D) | 2172x1303x35 mm | ||||
| Weight | 30.6 kg | ||||
| Cell Type | Monocrystalline | ||||
| Cell Number | 120 | ||||
| Glass Type | Anti-reflection Coating, Tempered | ||||
| Glass Thickness | 3.2 mm | ||||
| Encapsulant Type | EVA | ||||
| Frame Type | Anodized Aluminium Alloy | ||||
| Junction Box Protection Class | IP 68 | ||||
| Connector Type | MC4 | ||||
| Cable Crossection | 4 mm2 | ||||
➤15 year product warranty
➤ 25 year performance warranty with lowest degradation;
➤Minimized micro-cracks with innovative non-destructive cutting
technology
➤Ensured PID resistance through cell process and module material
control
➤Mechanical performance up to 6000 Pa positive load and 4000 Pa
negative load
|
|
