| Model Number : | TSM-DEG19C.20 |
| Price : | To be negotiated |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 200000 Watt/Watts per Week |
| Delivery Time : | To be negotiated |
| Brand Name : | TSM-DEG19C.20 |
| Certification : | CGC，ISO9001:2015，TUV SUD，PV，CNAS， |

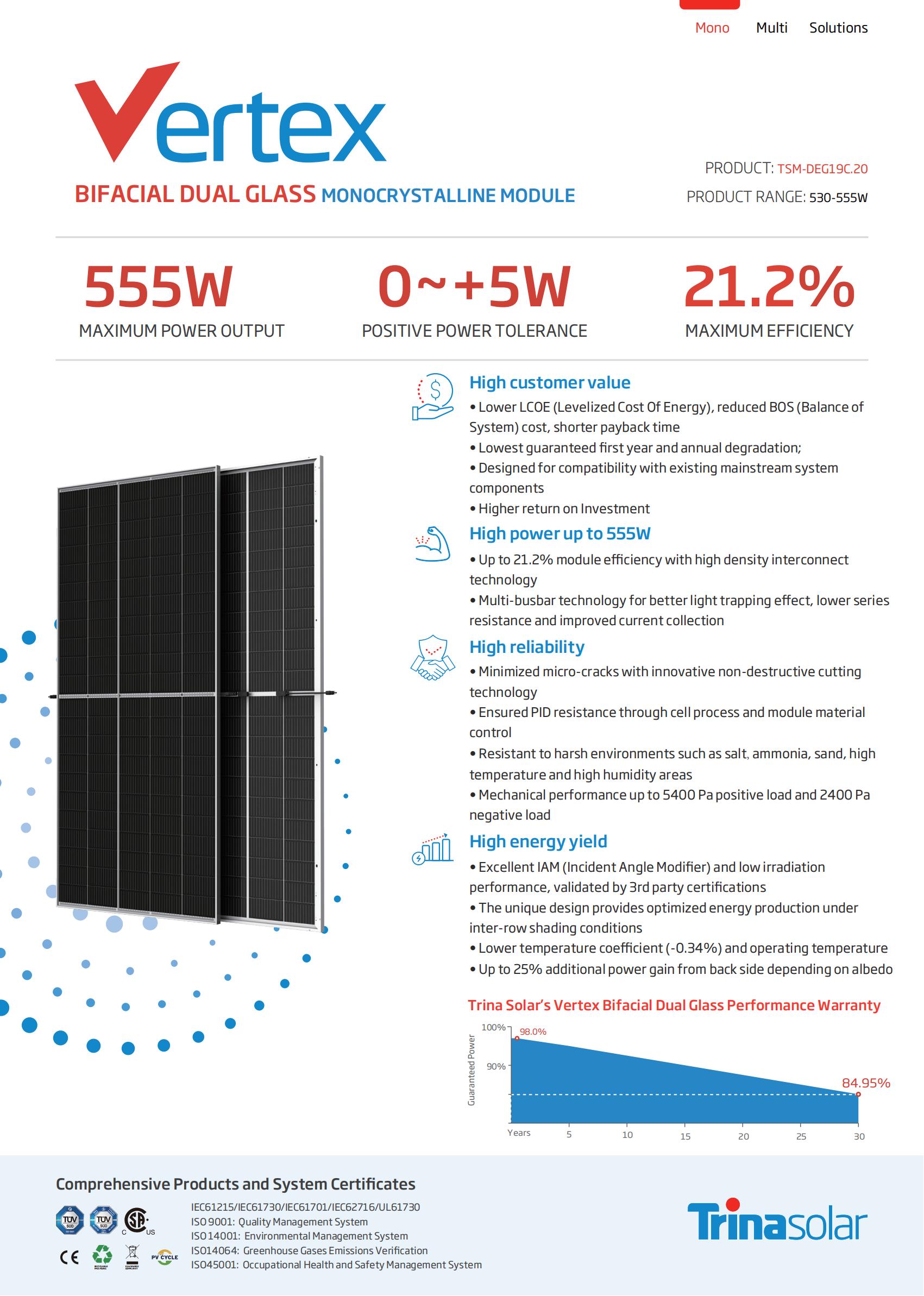

Trinasolar energy 210mm Mono Bifacial solar panels 535W-555W solar pv power
Mono facial solar panels are designed to capture sunlight from only one side of the panel, which is the front side. This design allows for a more streamlined and cost-effective manufacturing process, as well as a sleeker appearance compared to bifacial solar panels, which generate power from both the front and rear sides of the panel.
➤ Effectively reduce system BOS costs, achieve lower cost of
electricity, and improve project profitability
➤ Lower first-year and year-to-year decay values
➤ Product is compatible with mainstream system designs
➤ Apply 210mm large wafer technology, and cut half module
technology
➤ Application of dense row technology, module efficiency increased
to 21.0%
➤ Multi-Main-Barrier (MBB) technology is applied to improve optical
utilization and reduce internal current loss
➤ Application of innovative non-destructive cutting technology to
reduce the risk of hidden cracks
➤ Improve PID resistance through cell process optimization and
material control
➤ Passed mechanical load tests of 5400 Pa on the front side and
2400 Pa on the back side

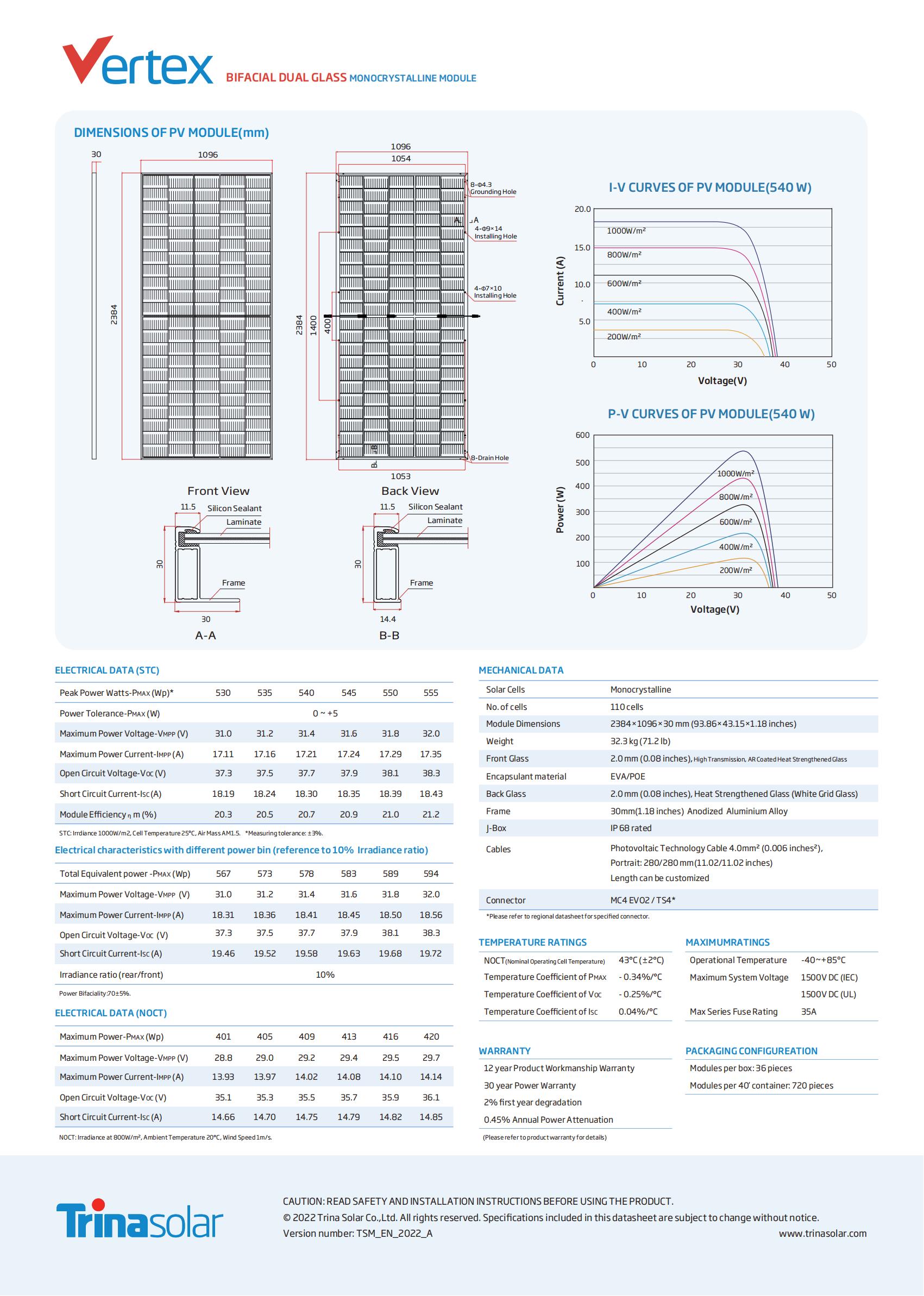

| Model No. | 530 | 535 | 540 | 545 | 550 | 555 |
| Warranty | ||||||
| Product Warranty | 12 Years | |||||
| Power Warranty | 30 Years of 84.95% Output Power | |||||
| Electrical Data at STC | ||||||
| Maximum Power (Pmax) | 530 Wp | 535 Wp | 540 Wp | 545 Wp | 550 Wp | 555 Wp |
| Voltage at Maximum Power (Vmpp) | 31 V | 31.2 V | 31.4 V | 31.6 V | 31.8 V | 32 V |
| Current at Maximum Power (Impp) | 17.11 A | 17.16 A | 17.21 A | 17.24 A | 17.29 A | 17.35 A |
| Open Circuit Voltage (Voc) | 37.3 V | 37.5 V | 37.7 V | 37.9 V | 38.1 V | 38.3 V |
| Short Circuit Current (Isc) | 18.19 A | 18.24 A | 18.3 A | 18.35 A | 18.39 A | 18.43 A |
| Panel Efficiency | 20.30% | 20.50% | 20.70% | 20.90% | 21% | 21.20% |
| Power Tolerance (Positive) | 1% | 1% | 1% | 1% | 1% | 1% |
| Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C | ||||||
| Electrical Data at NOCT | ||||||
| Maximum Power (Pmax) | 401 Wp | 405 Wp | 409 Wp | 413 Wp | 416 Wp | 420 Wp |
| Voltage at Maximum Power (Vmpp) | 28.8 V | 29 V | 29.2 V | 29.4 V | 29.5 V | 29.7 V |
| Current at Maximum Power (Impp) | 13.93 A | 13.97 A | 14.02 A | 14.08 A | 14.1 A | 14.14 A |
| Open Circuit Voltage (Voc) | 35.1 V | 35.3 V | 35.5 V | 35.7 V | 35.9 V | 36.1 V |
| Short Circuit Current (Isc) | 14.66 A | 14.7 A | 14.75 A | 14.79 A | 14.82 A | 14.85 A |
| Temperature | 43±2 °C | |||||
| Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C | ||||||
| Thermal Ratings | ||||||
| Operating Temperature Range | 40~85 °C | |||||
| Temperature Coefficient of Pmax | 0.34 %/°C | |||||
| Temperature Coefficient of Voc | 0.25 %/°C | |||||
| Temperature Coefficient of Isc | 0.04 %/°C | |||||
| Maximum Ratings | ||||||
| Maximum System Voltage | 1500 V | |||||
| Series Fuse Rating | 35 A | |||||
| Material Data | ||||||
| Panel Dimension (H/W/D) | 2384x1096x30 mm | |||||
| Weight | 32.3 kg | |||||
| Cell Type | Bifacial | |||||
| Cell Number | 110 | |||||
| Glass Type | Anti-reflection Coating | |||||
| Glass Thickness | 2 mm | |||||
| Encapsulant Type | EVA | |||||
| Frame Type | Anodized Aluminium Alloy | |||||
| Junction Box Protection Class | IP 68 | |||||
| Connector Type | MC4 | |||||
| Cable Crossection | 4 mm2 | |||||
➤15 year product warranty
➤ 25 year performance warranty with lowest degradation;
➤Minimized micro-cracks with innovative non-destructive cutting
technology
➤Ensured PID resistance through cell process and module material
control
➤Mechanical performance up to 6000 Pa positive load and 4000 Pa
negative load
|
|
