    670W Trina Pv Modules 210mm Solar Cell Mono Facial Half Cut Modules 650W

    Ask Lasest Price
    Model Number : TSM-DE21
    Price : To be negotiated
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200000 Watt/Watts per Week
    Delivery Time : To be negotiated
    Brand Name : TSM-DE21
    Certification : CGC,ISO9001:2015,TUV SUD,PV,CNAS,
    • Product Details
    • Company Profile

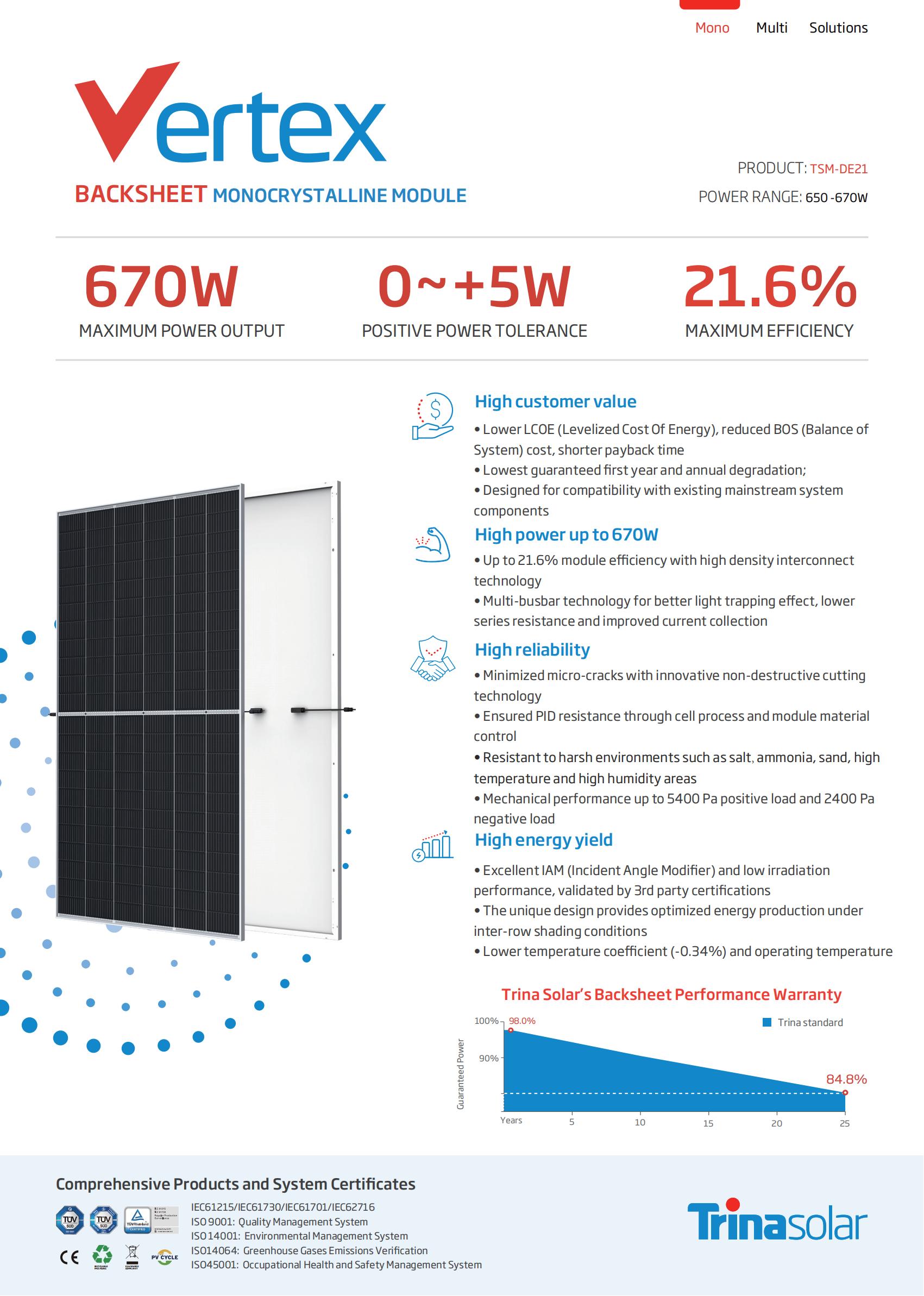

    670W Trina Pv Modules 210mm Solar Cell Mono Facial Half Cut Modules 650W

    Trinasolar 210mm Solar Cell Mono Facial Half Cell Solar Panels 650W-670W Solar Pv Power


    Trina Solar offers a range of high-power solar panels featuring 210mm solar cells, mono facial half-cell design, and power outputs ranging from 650W to 670W. These panels are designed to deliver exceptional performance, efficiency, and power generation capacity. Here is a product description for Trina Solar's 210mm mono facial half-cell solar panels with power outputs of 650W-670W:


    Power Output: The Trina Solar 210mm solar panels with power outputs ranging from 650W to 670W provide industry-leading wattage for residential, commercial, and utility-scale applications. These high-wattage panels offer significant electricity generation capacity, allowing for efficient utilization of available roof or ground space.


    Mono Facial Half-Cell Design: These solar panels feature a mono facial half-cell design, which means that the cells are divided into two halves with separate current paths. This design reduces resistive losses and improves energy yield by mitigating the effects of shading, soiling, and other factors that can impact overall system performance.

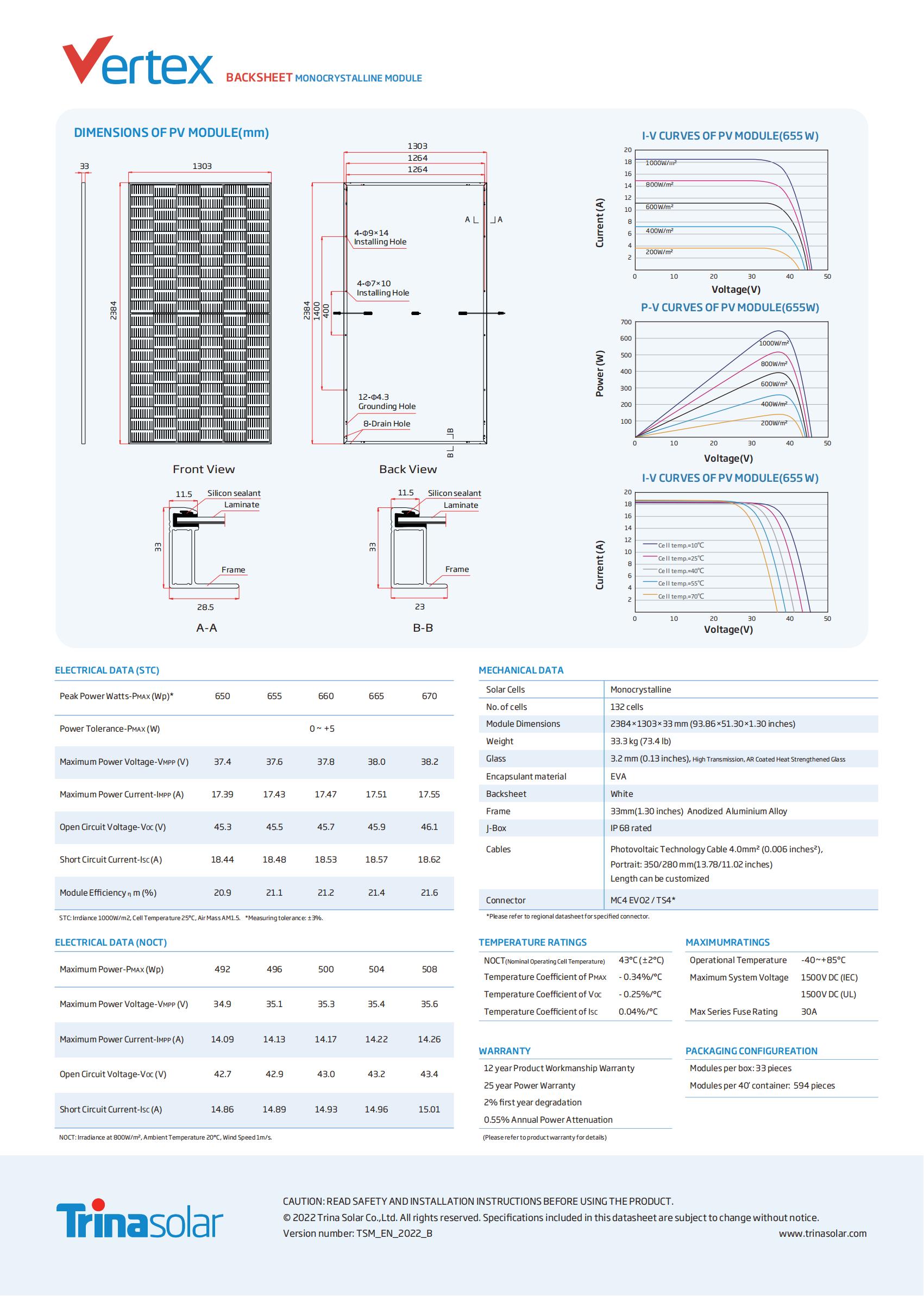

    Model No.650655660665670
    Warranty
    Product Warranty12 Years
    Power Warranty25 Years of 84.8% Output Power
    Electrical Data at STC
    Maximum Power (Pmax)650 Wp655 Wp660 Wp665 Wp670 Wp
    Voltage at Maximum Power (Vmpp)37.4 V37.6 V37.8 V38 V38.2 V
    Current at Maximum Power (Impp)17.39 A17.43 A17.47 A17.51 A17.55 A
    Open Circuit Voltage (Voc)45.3 V45.5 V45.7 V45.9 V46.1 V
    Short Circuit Current (Isc)18.44 A18.48 A18.53 A18.57 A18.62 A
    Panel Efficiency20.90%21.10%21.20%21.40%21.60%
    Power Tolerance (Positive)1%1%1%1%1%
    Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C
    Electrical Data at NOCT
    Maximum Power (Pmax)492 Wp496 Wp500 Wp504 Wp508 Wp
    Voltage at Maximum Power (Vmpp)34.9 V35.1 V35.3 V35.4 V35.6 V
    Current at Maximum Power (Impp)14.09 A14.13 A14.17 A14.22 A14.26 A
    Open Circuit Voltage (Voc)42.7 V42.9 V43 V43.2 V43.4 V
    Short Circuit Current (Isc)14.86 A14.89 A14.93 A14.96 A15.01 A
    Temperature43±2 °C
    Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C
    Thermal Ratings
    Operating Temperature Range40~85 °C
    Temperature Coefficient of Pmax0.34 %/°C
    Temperature Coefficient of Voc0.25 %/°C
    Temperature Coefficient of Isc0.04 %/°C
    Maximum Ratings
    Maximum System Voltage1500 V
    Series Fuse Rating30 A
    Material Data
    Panel Dimension (H/W/D)2384x1303x35 mm
    Weight33.9 kg
    Cell TypeMonocrystalline
    Cell Number132
    Glass TypeAnti-reflection Coating, Tempered
    Glass Thickness3.2 mm
    Encapsulant TypeEVA
    Frame TypeAnodized Aluminium Alloy
    Junction Box Protection ClassIP 68
    Connector TypeMC4
    Cable Crossection4 mm2


    ➤15 year product warranty
    ➤ 25 year performance warranty with lowest degradation;
    ➤Minimized micro-cracks with innovative non-destructive cutting technology
    ➤Ensured PID resistance through cell process and module material control
    ➤Mechanical performance up to 6000 Pa positive load and 4000 Pa negative load




    FAQ
    Q:Are you a factory or a trading company?
    A:We are a professional Solar Panels Manufacturer in China
    Q:How can we guarantee the products quality?
    A:Always provide the esteemed buyer a pre-production sample before mass production; Always testing every product before despatching the shipments;
    Q:What products we can supply you?
    A:Solar Panel,Inverter,Mounting System,Battery,Pv Cable,Distributor Box,Pv Connector,Etc

    Q:Can the products pricing be cheaper?
    A:Of course, you will be offered a a very good discount with large quantities.
    Q: Can print our company‘s logo on the pv panels?
    A:Yes! And we accept the OEM&ODM orders.
