| Model Number : | TSM-DE09R.08 |
| Price : | To be negotiated |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability : | 200000 Watt/Watts per Week |
| Delivery Time : | To be negotiated |
| Brand Name : | TSM-DE09R.08 |
| Certification : | CGC，ISO9001:2015，TUV SUD，PV，CNAS， |

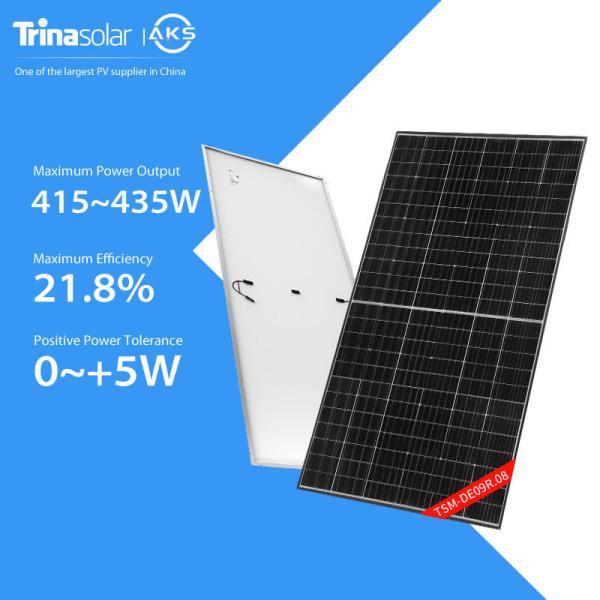

Mono facial solar panels are a type of photovoltaic (PV) panel that utilizes monocrystalline silicon solar cells to convert sunlight into electricity. These panels are known for their high efficiency, long lifespan, and sleek appearance, making them a popular choice for residential and commercial applications.
| Model No. | 415 | 420 | 425 | 430 | 435 |
| Warranty | |||||
| Product Warranty | 15 Years | ||||
| Power Warranty | 25 Years of 84.8% Output Power | ||||
| Electrical Data at STC | |||||
| Maximum Power (Pmax) | 415 Wp | 420 Wp | 425 Wp | 430 Wp | 435 Wp |
| Voltage at Maximum Power (Vmpp) | 41.7 V | 42 V | 42.2 V | 42.3 V | 42.5 V |
| Current at Maximum Power (Impp) | 9.94 A | 10.01 A | 10.08 A | 10.17 A | 10.24 A |
| Open Circuit Voltage (Voc) | 50 V | 50.1 V | 50.2 V | 50.3 V | 50.4 V |
| Short Circuit Current (Isc) | 10.55 A | 10.58 A | 10.61 A | 10.64 A | 10.67 A |
| Panel Efficiency | 20.80% | 21% | 21.30% | 21.50% | 21.80% |
| Power Tolerance (Positive) | 1% | 1% | 1% | 1% | 1% |
| Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C | |||||
| Electrical Data at NOCT | |||||
| Maximum Power (Pmax) | 312 Wp | 317 Wp | 321 Wp | 325 Wp | 329 Wp |
| Voltage at Maximum Power (Vmpp) | 38.7 V | 39.2 V | 39.5 V | 39.7 V | 40 V |
| Current at Maximum Power (Impp) | 8.07 A | 8.1 A | 8.13 A | 8.17 A | 8.23 A |
| Open Circuit Voltage (Voc) | 47.1 V | 47.1 V | 47.2 V | 47.4 V | 47.5 V |
| Short Circuit Current (Isc) | 8.5 A | 8.53 A | 8.55 A | 8.6 A | 8.65 A |
| Temperature | 43±2 °C | ||||
| Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C | |||||
| Thermal Ratings | |||||
| Operating Temperature Range | 40~85 °C | ||||
| Temperature Coefficient of Pmax | 0.34 %/°C | ||||
| Temperature Coefficient of Voc | 0.25 %/°C | ||||
| Temperature Coefficient of Isc | 0.04 %/°C | ||||
| Maximum Ratings | |||||
| Maximum System Voltage | 1500 V | ||||
| Series Fuse Rating | 20 A | ||||
| Material Data | |||||
| Panel Dimension (H/W/D) | 1762x1134x30 mm | ||||
| Weight | 21.8 kg | ||||
| Cell Type | Monocrystalline | ||||
| Cell Number | 144 | ||||
| Glass Type | Anti-reflection Coating | ||||
| Glass Thickness | 3.2 mm | ||||
| Encapsulant Type | EVA | ||||
| Frame Type | Anodized Aluminium Alloy | ||||
| Junction Box Protection Class | IP 68 | ||||
| Connector Type | MC4 | ||||
| Cable Crossection | 4 mm2 | ||||
➤ Designed for compatibility with existing mainstream optimizers,
inverters and mounting systems
➤ Perfect size and low weight. Easy for handling. Economy for
transporting
➤ Diverse installation solutions. Flexible for system deployment
Universal solution for residential and C&I rooftops
• Designed for compatibility with existing mainstream optimizers,
inverters
and mounting systems
• Perfect size and low weight. Easy for handling. Economy for
transporting
• Diverse installation solutions. Flexible for system deployment
➤15 year product warranty
➤ 25 year performance warranty with lowest degradation;
➤Minimized micro-cracks with innovative non-destructive cutting
technology
➤Ensured PID resistance through cell process and module material
control
➤Mechanical performance up to 6000 Pa positive load and 4000 Pa
negative load
|
|
