    395W 400W Panel Canadian Solar 415W 420W High Efficiency Canadian Solar Bifacial

    Ask Lasest Price
    Model Number : HiKu6 (All-Black)-CS6R-MS
    Price : To be negotiated
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200000 Watt/Watts per Week
    Delivery Time : To be negotiated
    Brand Name : HiKu6-CS6R-MS
    Certification : CGC,ISO9001:2015,TUV SUD,PV,CNAS,
    • Product Details
    • Company Profile

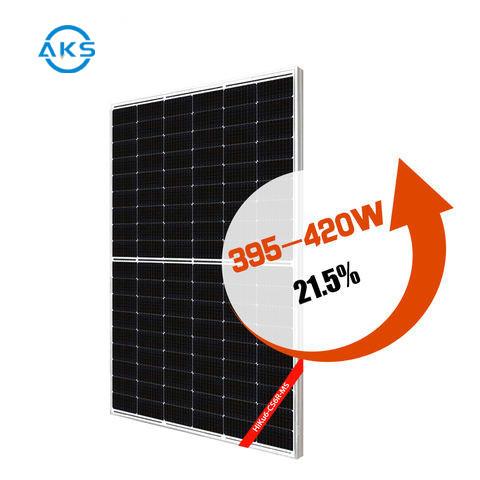

    395W 400W Panel Canadian Solar 415W 420W High Efficiency Canadian Solar Bifacial

    Canadian 395W 400W 405W 410W 415W 420W High Efficiency Bifacial Solar Panel Hjt Solar Cell PV Panels Mono Perc Panel

    A monocrystalline solar panel is a solar panel comprising monocrystalline solar cells. The panel derives its name from a cylindrical silicon ingot grown from single-crystal silicon of high purity in the same way as a semiconductor. As the cell is constituted of a single crystal, it provides the electrons more space to move for a better electricity flow. The cylindrical ingot is sliced into wafers forming cells. To maximize the utility of the cells, the circular wafers are wire cut to an octagonal-shaped wafer. These cells have a unique look because of their octagonal shape. They also have a uniform color.


    High Power Dual Cell PERC Module

    · 210 mm wafer + 132 / 120 dual cell + PERC technology
    · Module power up to 670 W
    · 0.4% more energy yield in module lifetime


    Lower BOS cost & LCOE cost

    · Reduce 5.7% BOS cost
    · 3.5% lower LCOE
    · Compatible with mainstream inverters


    Enhanced reliability

    · Comprehensive LID / LeTID mitigation technology, up to 50% lower degradation
    · Excellent hot spot performance
    · Better shading tolerance


    Model No.CS6R-395MSCS6R-400MSCS6R-405MSCS6R-410MSCS6R-415MSCS6R-420MS
    Warranty
    Product Warranty25 Years
    Power Warranty25 Years of 84.8% Output Power
    Electrical Data at STC
    Maximum Power (Pmax)395 Wp400 Wp405 Wp410 Wp415 Wp420 Wp
    Voltage at Maximum Power (Vmpp)30.6 V30.8 V31 V31.2 V31.4 V31.6 V
    Current at Maximum Power (Impp)12.91 A12.99 A13.07 A13.15 A13.23 A13.31 A
    Open Circuit Voltage (Voc)36.6 V36.8 V37 V37.02 V37.4 V37.6 V
    Short Circuit Current (Isc)13.77 A13.85 A13.93 A14.01 A14.09 A14.17 A
    Panel Efficiency20.20%20.50%20.70%21%21.30%21.50%
    Power Tolerance (Positive)2.50%2.50%2.50%2.50%2.50%2.50%
    Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C
    Electrical Data at NOCT
    Maximum Power (Pmax)296 Wp300 Wp304 Wp307 Wp311 Wp315 Wp
    Voltage at Maximum Power (Vmpp)28.7 V28.9 V29.1 V29.2 V29.4 V29.6 V
    Current at Maximum Power (Impp)10.33 A10.39 A10.45 A10.52 A10.58 A10.65 A
    Open Circuit Voltage (Voc)34.6 V34.8 V35 V35.1 V35.3 V35.5 V
    Short Circuit Current (Isc)11.09 A11.15 A11.21 A11.28 A11.34 A11.41 A
    Temperature41±3 °C
    Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C
    Thermal Ratings
    Operating Temperature Range40~85 °C
    Temperature Coefficient of Pmax0.34 %/°C
    Temperature Coefficient of Voc0.26 %/°C
    Temperature Coefficient of Isc0.05 %/°C
    Maximum Ratings
    Maximum System Voltage1500 V
    Series Fuse Rating25 A
    Material Data
    Panel Dimension (H/W/D)1722x1134x30 mm
    Weight21.3 kg
    Cell TypePERC
    Cell Number108
    Glass TypeAnti-reflection Coating, Tempered
    Glass Thickness3.2 mm
    Frame TypeAnodized Aluminium Alloy
    Junction Box Diodes3
    Junction Box Protection ClassIP 68
    Connector TypeMC4
    Cable Crossection4 mm2
    Cable Length410 mm


    FAQ
    Q:Are you a factory or a trading company?
    A:We are a professional Solar Panels Manufacturer in China
    Q:How can we guarantee the products quality?
    A:Always provide the esteemed buyer a pre-production sample before mass production; Always testing every product before despatching the shipments;
    Q:What products we can supply you?
    A:Solar Panel,Inverter,Mounting System,Battery,Pv Cable,Distributor Box,Pv Connector,Etc

    Q:Can the products pricing be cheaper?
    A:Of course, you will be offered a a very good discount with large quantities.
    Q: Can print our company‘s logo on the pv panels?
    A:Yes! And we accept the OEM&ODM orders.
