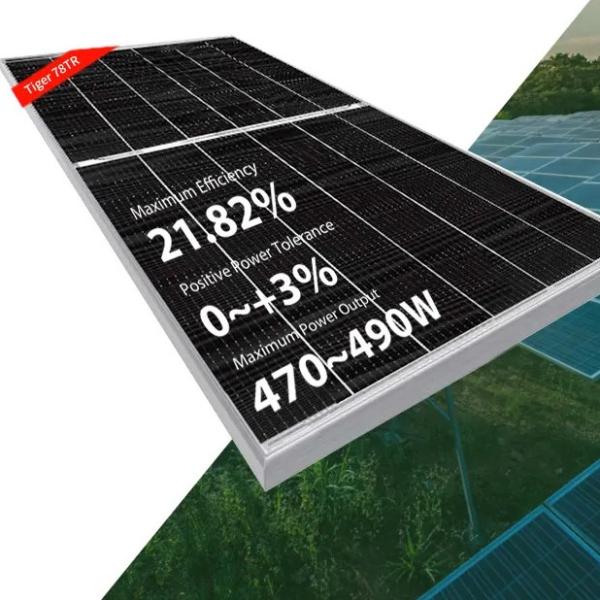

    470W 475W Jinko Solar Panel 480W 485W 490W High Efficiency Solar Cells Solar Panel

    Ask Lasest Price
    Model Number : Tiger 78TR(470-490W)
    Price : To be negotiated
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200000 Watt/Watts per Week
    Delivery Time : To be negotiated
    Brand Name : Jinko solar
    Certification : CGC,ISO9001:2015,TUV SUD,PV,CNAS,
    • Product Details
    • Company Profile

    470W 475W Jinko Solar Panel 480W 485W 490W High Efficiency Solar Cells Solar Panel

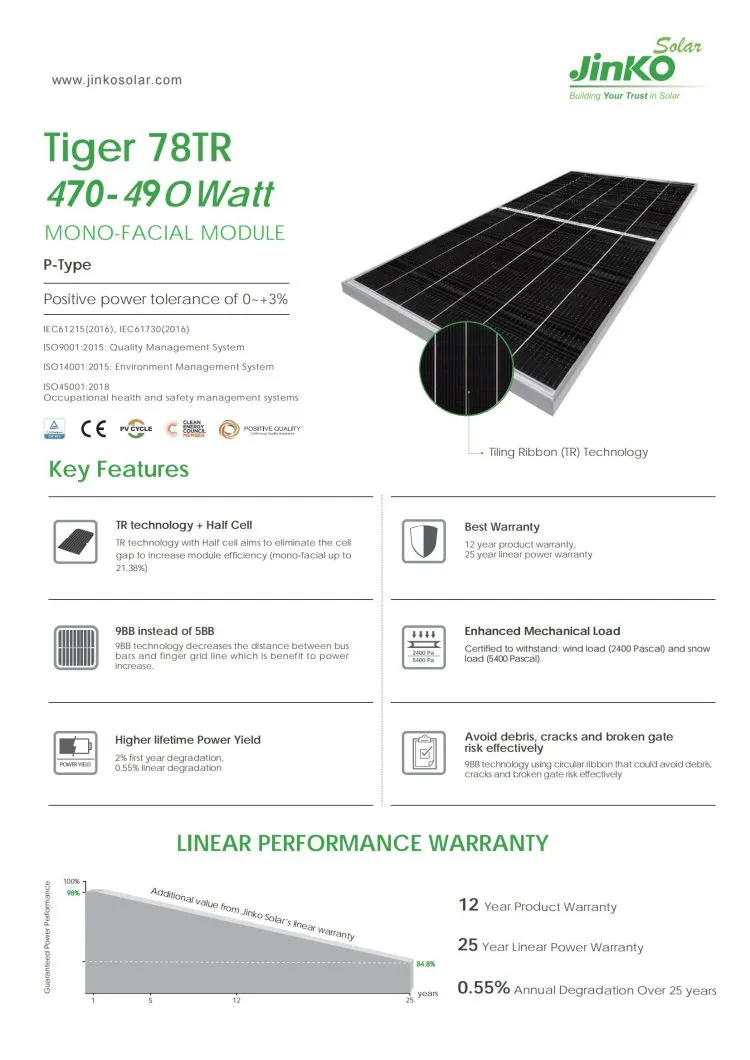

    Jinko 470W 475W 480W 485W 490W High Efficiency Solar Cells Solar Panel China Stock Solar Panels Mono Crystalline

    Government support and incentives for renewable energy sources have made investing in PERC solar panels more accessible for homeowners and businesses alike. These incentives can include tax credits, rebates, and feed-in tariffs that help offset the initial costs associated with installing a solar energy system. By making it more affordable for consumers to invest in PERC solar panels, these incentives contribute to the widespread adoption of this advanced technology and promote a more sustainable future.


    Cell Type
    P type Mono-crystalline
    No.of cells
    156(2×78)
    Dimensions
    2182×1029×35mm (85.91×40.51×1.38 inch)
    Weight
    25.0kg (55.12 lbs)
    Front Glass
    3.2mm,Anti-Reflection Coating,
    High Transmission, Low Iron, Tempered Glass
    Frame
    Anodized Aluminium Alloy
    Junction Box
    IP68 Rated
    Output Cables
    TUV 1x4.0mm2
    (+): 290mm , (-): 145mm or Customized Length

    Model No.JKM470M-7RL3/JKM470M-7RL3-VJKM475M-7RL3/JKM475M-7RL3-VJKM480M-7RL3/JKM480M-7RL3-VJKM485M-7RL3/JKM485M-7RL3-VJKM490M-7RL3/JKM490M-7RL3-V
    Warranty
    Product Warranty12 Years
    Power Warranty25 Years of 84.8% Output Power

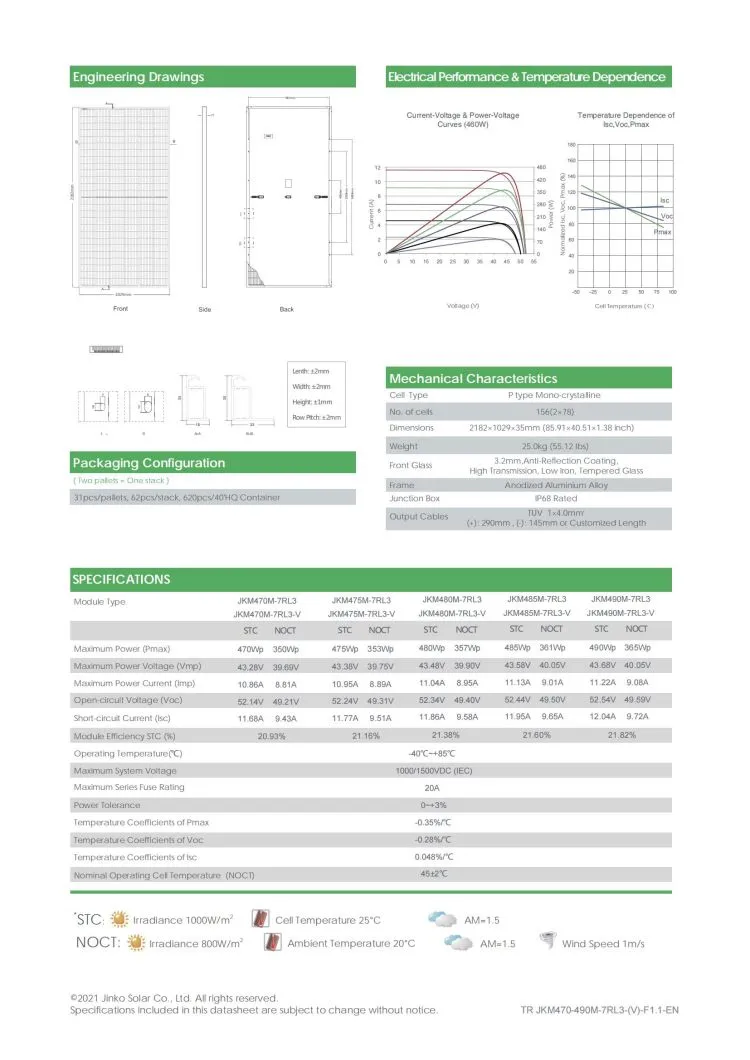

    Electrical Data at STC
    Maximum Power (Pmax)470 Wp475 Wp480 Wp485 Wp490 Wp
    Voltage at Maximum Power (Vmpp)43.28 V43.38 V43.48 V43.58 V43.68 V
    Current at Maximum Power (Impp)10.86 A10.95 A11.04 A11.13 A11.22 A
    Open Circuit Voltage (Voc)52.14 V52.24 V52.34 V52.44 V52.54 V
    Short Circuit Current (Isc)11.68 A11.77 A11.86 A11.95 A12.04 A
    Panel Efficiency20.93%21.16%21.38%21.60%21.82%
    Power Tolerance (Positive)3%3%3%3%3%
    Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C
    Electrical Data at NOCT
    Maximum Power (Pmax)350 Wp353 Wp357 Wp361 Wp365 Wp
    Voltage at Maximum Power (Vmpp)39.69 V39.75 V39.9 V40.05 V40.05 V
    Current at Maximum Power (Impp)8.81 A8.89 A8.95 A9.01 A9.08 A
    Open Circuit Voltage (Voc)49.21 V49.31 V49.4 V49.5 V49.59 V
    Short Circuit Current (Isc)9.43 A9.51 A9.58 A9.65 A9.72 A
    Temperature45±2 °C
    Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C
    Thermal Ratings
    Operating Temperature Range40~85 °C
    Temperature Coefficient of Pmax0.35 %/°C
    Temperature Coefficient of Voc0.28 %/°C
    Temperature Coefficient of Isc0.048 %/°C
    Maximum Ratings
    Maximum System Voltage1500 V
    Series Fuse Rating20 A
    Material Data
    Panel Dimension (H/W/D)2182x1029x35 mm
    Weight25 kg
    Cell TypeMonocrystalline
    Cell Number156
    Glass TypeAnti-reflection Coating, Tempered
    Glass Thickness3.2 mm
    Frame TypeAnodized Aluminium Alloy
    Junction Box Protection ClassIP 68
    Cable Crossection4 mm2


    FAQ
    Q:Are you a factory or a trading company?
    A:We are a professional Solar Panels Manufacturer in China
    Q:How can we guarantee the products quality?
    A:Always provide the esteemed buyer a pre-production sample before mass production; Always testing every product before despatching the shipments;
    Q:What products we can supply you?
    A:Solar Panel,Inverter,Mounting System,Battery,Pv Cable,Distributor Box,Pv Connector,Etc

    Q:Can the products pricing be cheaper?
    A:Of course, you will be offered a a very good discount with large quantities.
    Q: Can print our company‘s logo on the pv panels?
    A:Yes! And we accept the OEM&ODM orders.
