    565W 570W Jinko Solar Panel 575W 580W 585W Bifacial Mono Perc Double Glass Module

    Ask Lasest Price
    Model Number : Tiger Neo N-type 72HL4-(V)
    Price : $0.18~0.22/Watt
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200000 Watt/Watts per Week
    Delivery Time : To be negotiated
    Brand Name : Jinko solar
    Certification : CGC,ISO9001:2015,TUV SUD,PV,CNAS,
    • Product Details
    • Company Profile

    565W 570W Jinko Solar Panel 575W 580W 585W Bifacial Mono Perc Double Glass Module

    Jinko 565W 570W 575W 580W 585W solar panel bifacial double glass solar panels hjt bifacial solar panel

    Jinko's Bifacial Double Glass Solar Panels are cutting-edge photovoltaic modules that utilize advanced technology to generate clean and renewable electricity. These panels feature a double-sided design, allowing them to capture sunlight from both the front and rear sides, significantly increasing their energy production.


    With power outputs ranging from 565W to 585W, these solar panels offer exceptional performance, making them suitable for various residential, commercial, and utility-scale applications. The high wattage output enables them to generate a significant amount of energy, maximizing the return on investment for solar projects.


    Model No.JKM565N-72HL4/JKM565N-72HL4-VJKM570N-72HL4/JKM570N-72HL4-VJKM575N-72HL4/JKM575N-72HL4-VJKM580N-72HL4/JKM580N-72HL4-VJKM585N-72HL4/JKM585N-72HL4-V
    Warranty
    Product Warranty12 Years
    Power Warranty15 Years of 93.40% Output Power, 30 Years of 84.7% Output Power

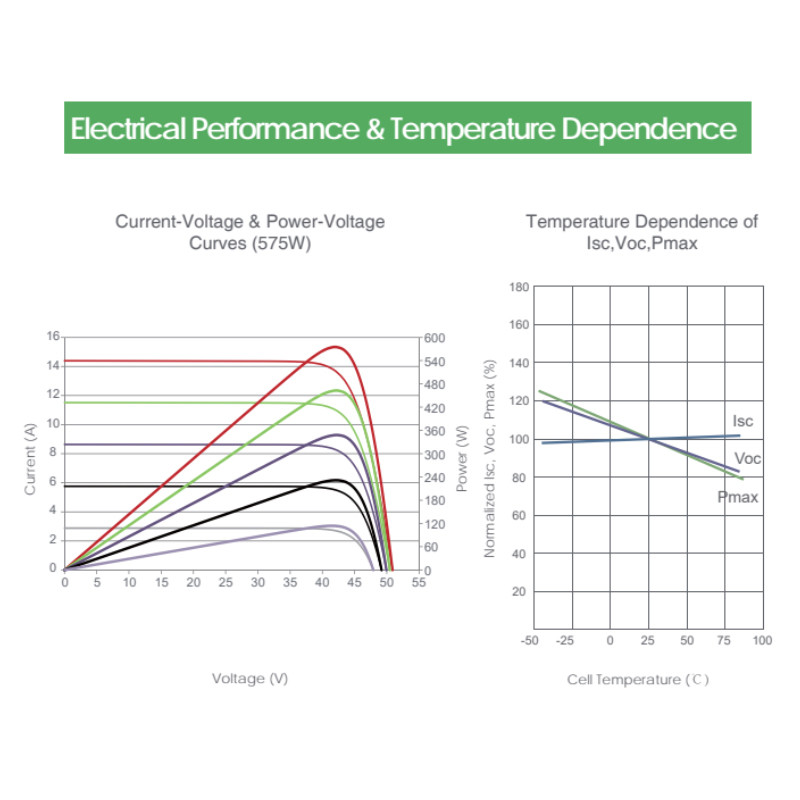

    Electrical Data at STC
    Maximum Power (Pmax)565 Wp570 Wp575 Wp580 Wp585 Wp
    Voltage at Maximum Power (Vmpp)41.92 V42.07 V42.22 V42.37 V42.52 V
    Current at Maximum Power (Impp)13.48 A13.55 A13.62 A13.69 A13.76 A
    Open Circuit Voltage (Voc)50.6 V50.74 V50.88 V51.02 V51.16 V
    Short Circuit Current (Isc)14.23 A14.31 A14.39 A14.47 A14.55 A
    Panel Efficiency21.80%22.07%22.26%22.45%22.65%
    Power Tolerance (Positive)3%3%3%3%3%
    Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C
    Electrical Data at NOCT
    Maximum Power (Pmax)425 Wp429 Wp432 Wp436 Wp440 Wp
    Voltage at Maximum Power (Vmpp)39.38 V39.51 V39.6 V39.69 V39.81 V
    Current at Maximum Power (Impp)10.79 A10.85 A10.92 A10.99 A11.05 A
    Open Circuit Voltage (Voc)48.06 V48.2 V48.33 V48.46 V48.6 V
    Short Circuit Current (Isc)11.49 A11.55 A11.62 A11.68 A11.75 A
    Temperature45±2 °C
    Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C
    Thermal Ratings
    Operating Temperature Range40~85 °C
    Temperature Coefficient of Pmax0.3 %/°C
    Temperature Coefficient of Voc0.25 %/°C
    Temperature Coefficient of Isc0.046 %/°C
    Maximum Ratings
    Maximum System Voltage1500 V
    Series Fuse Rating25 A
    Material Data
    Panel Dimension (H/W/D)2278x1134x35 mm
    Weight28 kg
    Cell TypeMonocrystalline
    Cell Number144
    Glass TypeAnti-reflection Coating, Tempered
    Glass Thickness3.2 mm
    Frame TypeAnodized Aluminium Alloy
    Junction Box Protection ClassIP 68
    Cable Crossection4 mm2

    565W 570W Jinko Solar Panel 575W 580W 585W Bifacial Mono Perc Double Glass Module

    565W 570W Jinko Solar Panel 575W 580W 585W Bifacial Mono Perc Double Glass Module565W 570W Jinko Solar Panel 575W 580W 585W Bifacial Mono Perc Double Glass Module



    FAQ
    Q:Are you a factory or a trading company?
    A:We are a professional Solar Panels Manufacturer in China
    Q:How can we guarantee the products quality?
    A:Always provide the esteemed buyer a pre-production sample before mass production; Always testing every product before despatching the shipments;
    Q:What products we can supply you?
    A:Solar Panel,Inverter,Mounting System,Battery,Pv Cable,Distributor Box,Pv Connector,Etc

    Q:Can the products pricing be cheaper?
    A:Of course, you will be offered a a very good discount with large quantities.
    Q: Can print our company‘s logo on the pv panels?
    A:Yes! And we accept the OEM&ODM orders.
