108 Half Cell Longi Solar Panel Mono Black Solar Panels 400W 405W 410W 415W 420W

X New Energy Technology (Changzhou) Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 108 Half Cell Longi Solar Panel Mono Black Solar Panels 400W 405W 410W 415W 420W from wholesalers

    Buy cheap 108 Half Cell Longi Solar Panel Mono Black Solar Panels 400W 405W 410W 415W 420W from wholesalers
    • Buy cheap 108 Half Cell Longi Solar Panel Mono Black Solar Panels 400W 405W 410W 415W 420W from wholesalers

    108 Half Cell Longi Solar Panel Mono Black Solar Panels 400W 405W 410W 415W 420W

    Ask Lasest Price
    Model Number : LR5-54HPB
    Price : To be negotiated
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200000 Watt/Watts per Week
    Delivery Time : To be negotiated
    Brand Name : Longi
    Certification : CGC,ISO9001:2015,TUV SUD,PV,CNAS,
    • Product Details
    • Company Profile

    108 Half Cell Longi Solar Panel Mono Black Solar Panels 400W 405W 410W 415W 420W

    Longi Solar Panel Full Black Mono 108 Half Cell Original 400W 405W 410W 415W 420W Solar Panels Pv Modules

    ➤ Suitable for distributed projects
    ➤ Advanced module technology delivers superior moducle efficiency
    ➤ Excellent outdoor power generation performance high module quality ensures long-term reliability
    ➤ Based on M10 wafer, best choice forultra-large power plants
    ➤ Advanced module technology delivers superiormodule efficiency
    ➤ Excellent outdoor power generation performance

    ➤ High module quality ensures long-term reliability

    ➤ 12 year Warranty for Materials and processing

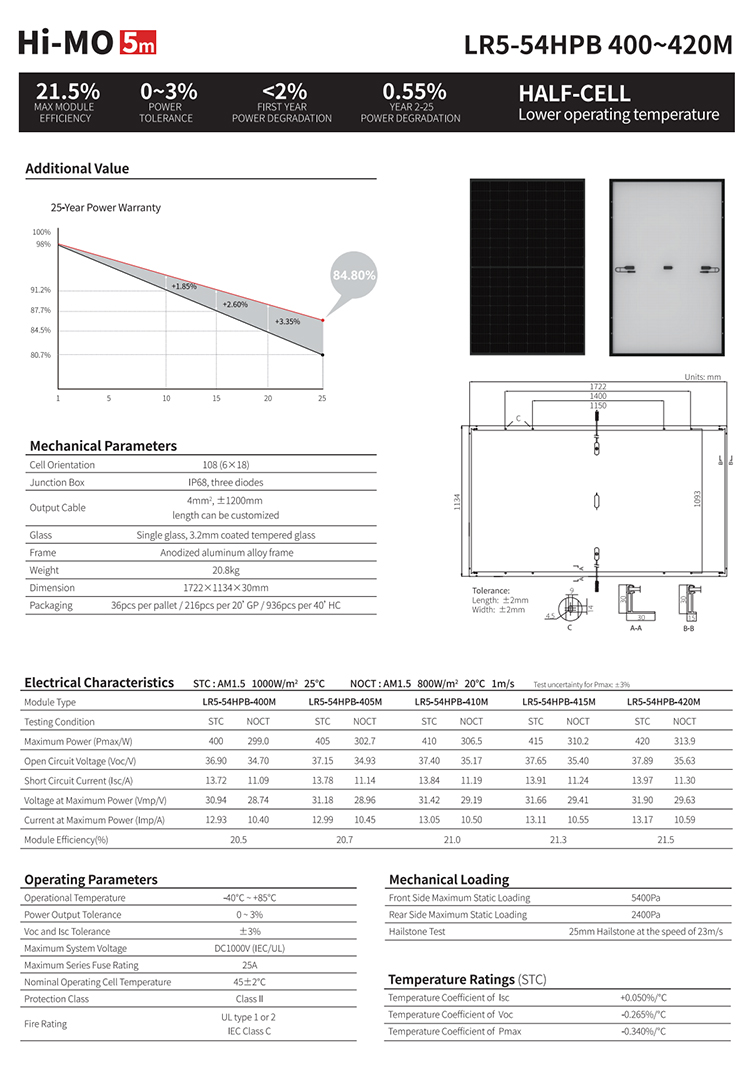

    Model No.LR5-54HPB-400MLR5-54HPB-405MLR5-54HPB-410MLR5-54HPB-415MLR5-54HPB-420M
    Warranty
    Product Warranty12 Years
    Power Warranty15 Years of 90.3% Output Power, 25 Years of 84.8% Output Power
    Electrical Data at STC
    Maximum Power (Pmax)400 Wp405 Wp410 Wp415 Wp420 Wp
    Voltage at Maximum Power (Vmpp)30.94 V31.18 V31.42 V31.66 V31.9 V
    Current at Maximum Power (Impp)12.93 A12.99 A13.05 A13.11 A13.17 A
    Open Circuit Voltage (Voc)36.9 V37.15 V37.4 V37.65 V37.89 V
    Short Circuit Current (Isc)13.72 A13.78 A13.84 A13.91 A13.97 A
    Panel Efficiency20.50%20.70%21%21.30%21.50%
    Power Tolerance (Positive)3%3%3%3%3%
    Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C
    Electrical Data at NOCT
    Maximum Power (Pmax)299 Wp302.7 Wp306.5 Wp310.2 Wp313.9 Wp
    Voltage at Maximum Power (Vmpp)28.74 V28.96 V29.19 V29.41 V29.63 V
    Current at Maximum Power (Impp)10.4 A10.45 A10.5 A10.5 A10.59 A
    Open Circuit Voltage (Voc)34.7 V34.93 V35.17 V35.4 V35.63 V
    Short Circuit Current (Isc)11.09 A11.14 A11.19 A11.24 A11.3 A
    Temperature45±2 °C
    Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C
    Thermal Ratings
    Operating Temperature Range40~85 °C
    Temperature Coefficient of Pmax0.34 %/°C
    Temperature Coefficient of Voc0.265 %/°C
    Temperature Coefficient of Isc0.05 %/°C
    Maximum Ratings
    Maximum System Voltage1000 V
    Series Fuse Rating25 A
    Material Data
    Panel Dimension (H/W/D)1722x1134x30 mm
    Weight20.8 kg
    Cell TypeMonocrystalline
    Cell Size182x182 mm
    Cell Number108
    Glass TypeTempered
    Glass Thickness3.2 mm
    Frame TypeAnodized Aluminium Alloy
    Junction Box Diodes3
    Junction Box Protection ClassIP 68
    Cable Crossection4 mm2
    Cable Length1200 mm



    FAQ
    Q:Are you a factory or a trading company?
    A:We are a professional Solar Panels Manufacturer in China
    Q:How can we guarantee the products quality?
    A:Always provide the esteemed buyer a pre-production sample before mass production; Always testing every product before despatching the shipments;
    Q:What products we can supply you?
    A:Solar Panel,Inverter,Mounting System,Battery,Pv Cable,Distributor Box,Pv Connector,Etc

    Q:Can the products pricing be cheaper?
    A:Of course, you will be offered a a very good discount with large quantities.
    Q: Can print our company‘s logo on the pv panels?
    A:Yes! And we accept the OEM&ODM orders.
