    580W 585W Thin Film Silicon Photovoltaic Module 610W 615W Panel Solar Canadian Full Black

    Ask Lasest Price
    Model Number : HiKu7-CS7L-MS
    Price : To be negotiated
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200000 Watt/Watts per Week
    Delivery Time : To be negotiated
    Brand Name : AKS
    Certification : CGC,ISO9001:2015,TUV SUD,PV,CNAS,
    • Product Details
    • Company Profile

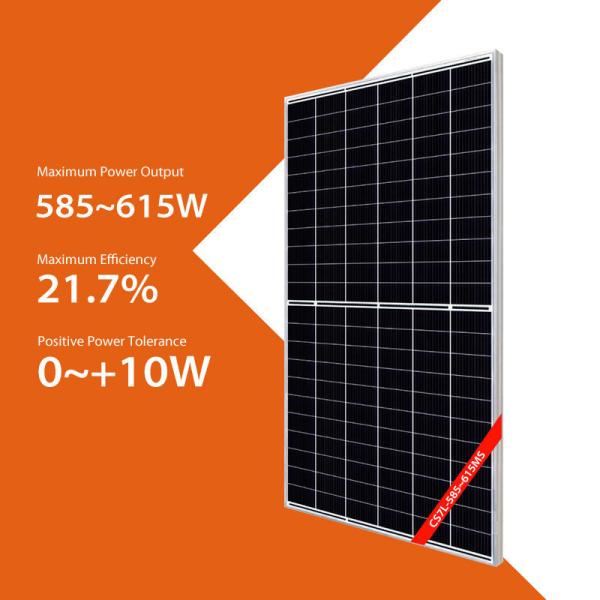

    580W 585W Thin Film Silicon Photovoltaic Module 610W 615W Panel Solar Canadian Full Black

    Canadian 580W 585W 590W 595W 600W 605W 610W 615W China Warehouse Full Black Shingled Solar Panel Kits

    In conclusion, the working principle of double-glass solar panels relies on the photovoltaic effect and their unique bifacial design to generate electricity from both direct and reflected sunlight. By incorporating features such as anti-reflective coatings, optimized installation angles, tracking systems, conductive metal contacts, bypass diodes, and safety measures, double-glass solar panels provide an efficient and reliable renewable energy solution for homeowners and businesses seeking a cleaner and more sustainable future.


    Model No.CS7L-580MS-RCS7L-585MS-RCS7L-590MS-RCS7L-595MS-RCS7L-600MS-RCS7L-605MS-RCS7L-610MS-R
    Warranty
    Product Warranty12 Years
    Power Warranty25 Years of 84.8% Output Power
    Electrical Data at STC
    Maximum Power (Pmax)580 Wp585 Wp590 Wp595 Wp600 Wp605 Wp610 Wp
    Voltage at Maximum Power (Vmpp)34.1 V34.3 V34.5 V34.7 V34.9 V35.1 V35.3 V
    Current at Maximum Power (Impp)17.02 A17.06 A17.11 A17.15 A17.2 A17.25 A17.29 A
    Open Circuit Voltage (Voc)40.5 V40.7 V40.9 V41.1 V41.3 V41.5 V41.7 V
    Short Circuit Current (Isc)18.27 A18.32 A18.37 A18.42 A18.47 A18.52 A18.57 A
    Panel Efficiency20.50%20.70%20.80%21%21.20%21.40%21.60%
    Power Tolerance (Positive)2%2%2%2%2%2%2%
    Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C
    Electrical Data at NOCT
    Maximum Power (Pmax)435 Wp439 Wp442 Wp446 Wp450 Wp454 Wp457 Wp
    Voltage at Maximum Power (Vmpp)32 V32.2 V32.3 V32.5 V32.7 V32.9 V33.1 V
    Current at Maximum Power (Impp)13.6 A13.62 A13.7 A13.73 A13.77 A13.8 A13.93 A
    Open Circuit Voltage (Voc)38.3 V38.5 V38.7 V38.8 V39 V39.2 V39.4 V
    Short Circuit Current (Isc)14.73 A14.77 A14.8 A14.85 A14.89 A14.93 A14.97 A
    Temperature41±3 °C
    Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C
    Thermal Ratings
    Operating Temperature Range40~85 °C
    Temperature Coefficient of Pmax0.34 %/°C
    Temperature Coefficient of Voc0.26 %/°C
    Temperature Coefficient of Isc0.05 %/°C
    Maximum Ratings
    Maximum System Voltage1500 V
    Series Fuse Rating30 A
    Material Data
    Panel Dimension (H/W/D)2172x1303x35 mm
    Weight31 kg
    Cell TypePERC
    Cell Number120
    Glass TypeAnti-reflection Coating, Tempered
    Glass Thickness3.2 mm
    Frame TypeAnodized Aluminium Alloy
    Junction Box Diodes3
    Junction Box Protection ClassIP 68
    Connector TypeMC4
    Cable Crossection6 mm2
    Cable Length460 mm


    FAQ
    Q:Are you a factory or a trading company?
    A:We are a professional Solar Panels Manufacturer in China
    Q:How can we guarantee the products quality?
    A:Always provide the esteemed buyer a pre-production sample before mass production; Always testing every product before despatching the shipments;
    Q:What products we can supply you?
    A:Solar Panel,Inverter,Mounting System,Battery,Pv Cable,Distributor Box,Pv Connector,Etc

    Q:Can the products pricing be cheaper?
    A:Of course, you will be offered a a very good discount with large quantities.
    Q: Can print our company‘s logo on the pv panels?
    A:Yes! And we accept the OEM&ODM orders.
