650W Roof Mounted Solar Panels 655W 660W 675W Canadian Half Cut Solar Panels

Ask Lasest Price
Model Number :	HiKu7
Price :	To be negotiated
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	200000 Watt/Watts per Week
Delivery Time :	To be negotiated
Brand Name :	Canadian SOLAR
Certification :	CGC，ISO9001:2015，TUV SUD，PV，CNAS，

Add to Cart

Product Details
Company Profile

650W Roof Mounted Solar Panels 655W 660W 675W Canadian Half Cut Solar Panels

Canadian 645W 650W 655W 660W 665W 670W 675W China Solar Panels Black Frame Mono Perc Solar Panel

The heart of our rooftop solar panels lies in the high-efficiency solar cells that convert sunlight into electricity through the photovoltaic effect. These solar cells are manufactured using state-of-the-art technology and undergo stringent quality control processes to ensure maximum performance, longevity, and return on investment. By choosing our rooftop solar panels, you are investing in a product that has been meticulously designed and crafted to provide you with a reliable and efficient energy solution for years to come.

Lower BOS cost & LCOE cost

· Reduce 5.7% BOS cost
· 3.5% lower LCOE
· Compatible with mainstream inverters

Enhanced reliability

· Comprehensive LID / LeTID mitigation technology, up to 50% lower degradation
· Excellent hot spot performance
· Better shading tolerance

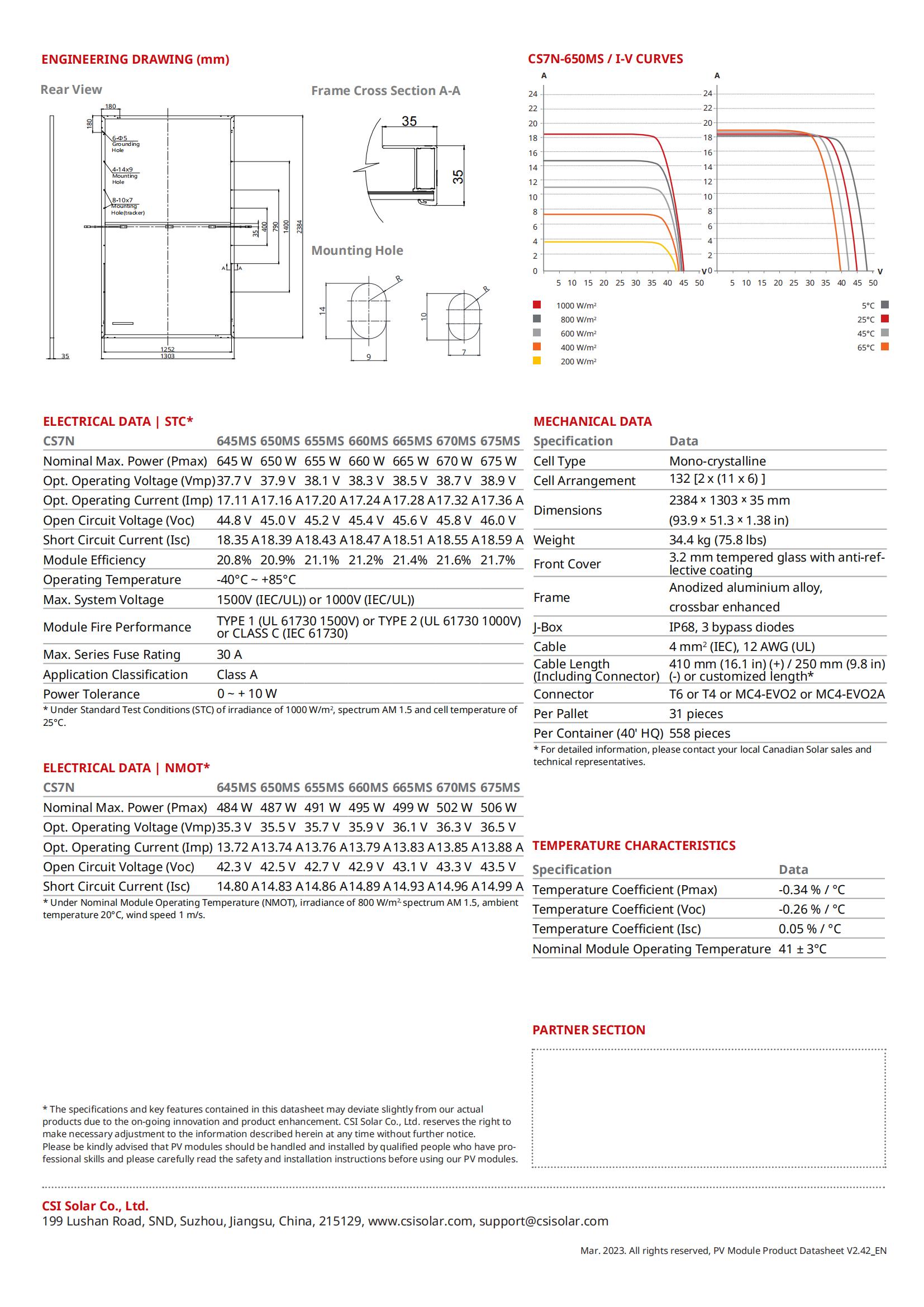

Model No.	CS7N-645MS	CS7N-650MS	CS7N-655MS	CS7N-660MS	CS7N-665MS	CS7N-670MS	CS7N-675MS
Warranty
Product Warranty	12 Years
Power Warranty	12 Years of 91.4% Output Power, 25 Years of 84.8% Output Power
Electrical Data at STC
Maximum Power (Pmax)	645 Wp	650 Wp	655 Wp	660 Wp	665 Wp	670 Wp	675 Wp
Voltage at Maximum Power (Vmpp)	37.7 V	37.9 V	38.1 V	38.3 V	38.5 V	38.7 V	38.9 V
Current at Maximum Power (Impp)	17.11 A	17.16 A	17.2 A	17.24 A	17.28 A	17.32 A	17.36 A
Open Circuit Voltage (Voc)	44.8 V	45 V	45.2 V	45.4 V	45.6 V	45.8 V	46 V
Short Circuit Current (Isc)	18.35 A	18.39 A	18.43 A	18.47 A	18.51 A	18.55 A	18.59 A
Panel Efficiency	20.80%	20.90%	21.10%	21.20%	21.40%	21.60%	21.70%
Power Tolerance (Positive)	1.50%	1.50%	1.50%	1.50%	1.50%	1.50%	1.50%
	Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C
Electrical Data at NOCT
Maximum Power (Pmax)	484 Wp	487 Wp	491 Wp	495 Wp	499 Wp	502 Wp	506 Wp
Voltage at Maximum Power (Vmpp)	35.3 V	35.5 V	35.7 V	35.9 V	36.1 V	36.3 V	36.5 V
Current at Maximum Power (Impp)	13.72 A	13.74 A	13.76 A	13.79 A	13.83 A	13.85 A	13.88 A
Open Circuit Voltage (Voc)	42.3 V	42.5 V	42.7 V	42.9 V	43.1 V	43.3 V	43.5 V
Short Circuit Current (Isc)	14.8 A	14.83 A	14.86 A	14.89 A	14.93 A	14.96 A	14.99 A
Temperature	41±3 °C
	Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C
Thermal Ratings
Operating Temperature Range	40~85 °C
Temperature Coefficient of Pmax	0.34 %/°C
Temperature Coefficient of Voc	0.26 %/°C
Temperature Coefficient of Isc	0.05 %/°C
Maximum Ratings
Maximum System Voltage	1500 V
Series Fuse Rating	30 A
Material Data
Panel Dimension (H/W/D)	2384x1303x35 mm
Weight	34.4 kg
Cell Type	PERC
Cell Number	132
Glass Type	Anti-reflection Coating, Tempered
Glass Thickness	3.2 mm
Frame Type	Anodized Aluminium Alloy
Junction Box Diodes	3
Junction Box Protection Class	IP 68
Connector Type	MC4
Cable Crossection	4 mm2
Cable Length	410 mm

FAQ

Q:Are you a factory or a trading company?
A:We are a professional Solar Panels Manufacturer in China
Q:How can we guarantee the products quality?
A:Always provide the esteemed buyer a pre-production sample before mass production; Always testing every product before despatching the shipments;
Q:What products we can supply you?
A:Solar Panel,Inverter,Mounting System,Battery,Pv Cable,Distributor Box,Pv Connector,Etc

Q:Can the products pricing be cheaper?
A:Of course, you will be offered a a very good discount with large quantities.
Q: Can print our company‘s logo on the pv panels?
A:Yes! And we accept the OEM&ODM orders.
