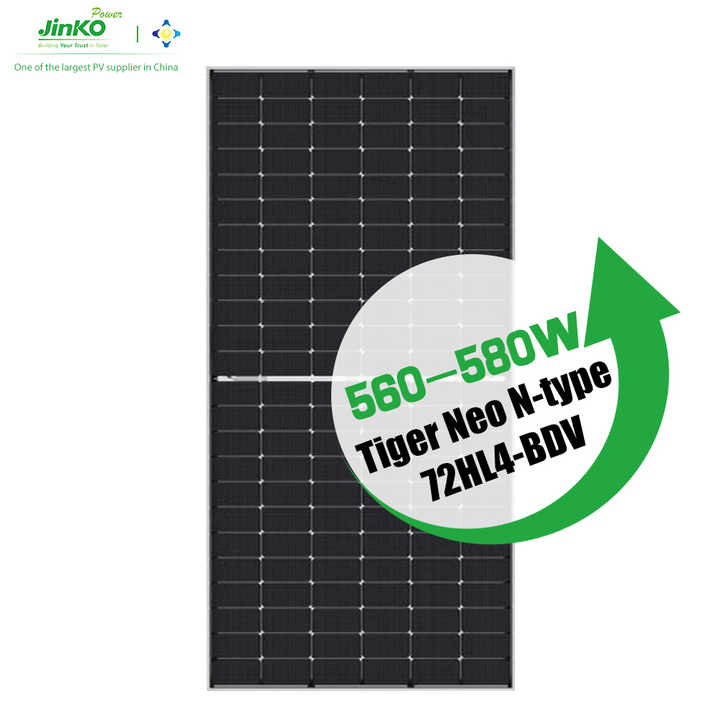

Jinko Bifacial Solar Panels 560W 565W 570W 575W 580W N Type Solar Cell Hjt Commercial

X New Energy Technology (Changzhou) Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Jinko Bifacial Solar Panels 560W 565W 570W 575W 580W N Type Solar Cell Hjt Commercial from wholesalers

    Buy cheap Jinko Bifacial Solar Panels 560W 565W 570W 575W 580W N Type Solar Cell Hjt Commercial from wholesalers
    • Buy cheap Jinko Bifacial Solar Panels 560W 565W 570W 575W 580W N Type Solar Cell Hjt Commercial from wholesalers

    Jinko Bifacial Solar Panels 560W 565W 570W 575W 580W N Type Solar Cell Hjt Commercial

    Ask Lasest Price
    Model Number : Tiger Neo N-type 72HL4-BDV
    Price : To be negotiated
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200000 Watt/Watts per Week
    Delivery Time : To be negotiated
    Brand Name : Jinko solar
    Certification : CGC,ISO9001:2015,TUV SUD,PV,CNAS,
    • Product Details
    • Company Profile

    Jinko Bifacial Solar Panels 560W 565W 570W 575W 580W N Type Solar Cell Hjt Commercial

    Jinko 560W 565W 570W 575W 580W N-Type Solar Cell Solar Module Hjt Panel Solar For Commercial Solar System

    One of the most significant advantages of bifacial solar panels is their enhanced efficiency compared to traditional monofacial solar panels. By capturing sunlight on both sides of the panel, bifacial solar panels can generate up to 30% more energy in the same amount of space. This increased efficiency makes bifacial solar panels an ideal choice for installations with limited space or where maximizing energy production is a priority. By choosing bifacial solar panels, you can harness the full potential of solar energy and enjoy higher energy output, reduced energy costs, and a shorter payback period.


    Model No.JKM550N-72HL4-BDVJKM555N-72HL4-BDVJKM560N-72HL4-BDVJKM565N-72HL4-BDVJKM570N-72HL4-BDV
    Warranty
    Product Warranty12 Years
    Power Warranty30 Years of 87.4% Output Power
    Electrical Data at STC
    Maximum Power (Pmax)550 Wp555 Wp560 Wp565 Wp570 Wp
    Voltage at Maximum Power (Vmpp)41.58 V41.77 V41.95 V42.14 V42.29 V
    Current at Maximum Power (Impp)13.23 A13.29 A13.35 A13.41 A13.48 A
    Open Circuit Voltage (Voc)50.27 V50.47 V50.67 V50.87 V51.07 V
    Short Circuit Current (Isc)14.01 A14.07 A14.13 A14.19 A14.25 A
    Panel Efficiency21.29%21.48%21.68%21.87%22.07%
    Power Tolerance (Positive)3%3%3%3%3%
    Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C
    Electrical Data at NOCT
    Maximum Power (Pmax)414 Wp417 Wp421 Wp425 Wp429 Wp
    Voltage at Maximum Power (Vmpp)39.13 V39.26 V39.39 V39.52 V39.65 V
    Current at Maximum Power (Impp)10.57 A10.63 A10.69 A10.75 A10.81 A
    Open Circuit Voltage (Voc)47.75 V47.94 V48.13 V48.32 V48.51 V
    Short Circuit Current (Isc)11.31 A11.36 A11.41 A11.46 A11.5 A
    Temperature45±2 °C
    Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s,ambient temperature 20°C
    Thermal Ratings
    Operating Temperature Range40~85 °C
    Temperature Coefficient of Pmax0.3 %/°C
    Temperature Coefficient of Voc0.25 %/°C
    Temperature Coefficient of Isc0.046 %/°C
    Maximum Ratings
    Maximum System Voltage1500 V
    Series Fuse Rating30 A
    Material Data
    Panel Dimension (H/W/D)2278x1134x30 mm
    Weight32 kg
    Cell TypeBifacial
    Cell Number144
    Glass TypeAnti-reflection Coating
    Glass Thickness2 mm
    Frame TypeAnodized Aluminium Alloy
    Junction Box Protection ClassIP 68
    Cable Crossection4 mm2



    FAQ
    Q:Are you a factory or a trading company?
    A:We are a professional Solar Panels Manufacturer in China
    Q:How can we guarantee the products quality?
    A:Always provide the esteemed buyer a pre-production sample before mass production; Always testing every product before despatching the shipments;
    Q:What products we can supply you?
    A:Solar Panel,Inverter,Mounting System,Battery,Pv Cable,Distributor Box,Pv Connector,Etc

    Q:Can the products pricing be cheaper?
    A:Of course, you will be offered a a very good discount with large quantities.
    Q: Can print our company‘s logo on the pv panels?
    A:Yes! And we accept the OEM&ODM orders.
