    Jinko Tiger P-Type 78tr 470W 475W 480W 485W 490W Mono Photovoltaic Pv Jinko Solar Panels

    Ask Lasest Price
    Brand Name : Jinko solar
    Model Number : Tiger 78TR(470-490W)
    Certification : CGC,ISO9001:2015,TUV SUD,PV,CNAS,
    Price : To be negotiated
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200000 Watt/Watts per Week
    Delivery Time : To be negotiated
    • Product Details
    • Company Profile

    Jinko Tiger P-Type 78tr 470W 475W 480W 485W 490W Mono Photovoltaic Pv Jinko Solar Panels

    AKS Jinko Tiger P-type 78tr Solar Panel 470W 475W 480W 485W 490W Mono Photovoltaic Pv Solar Panels Jinko Solar Panels

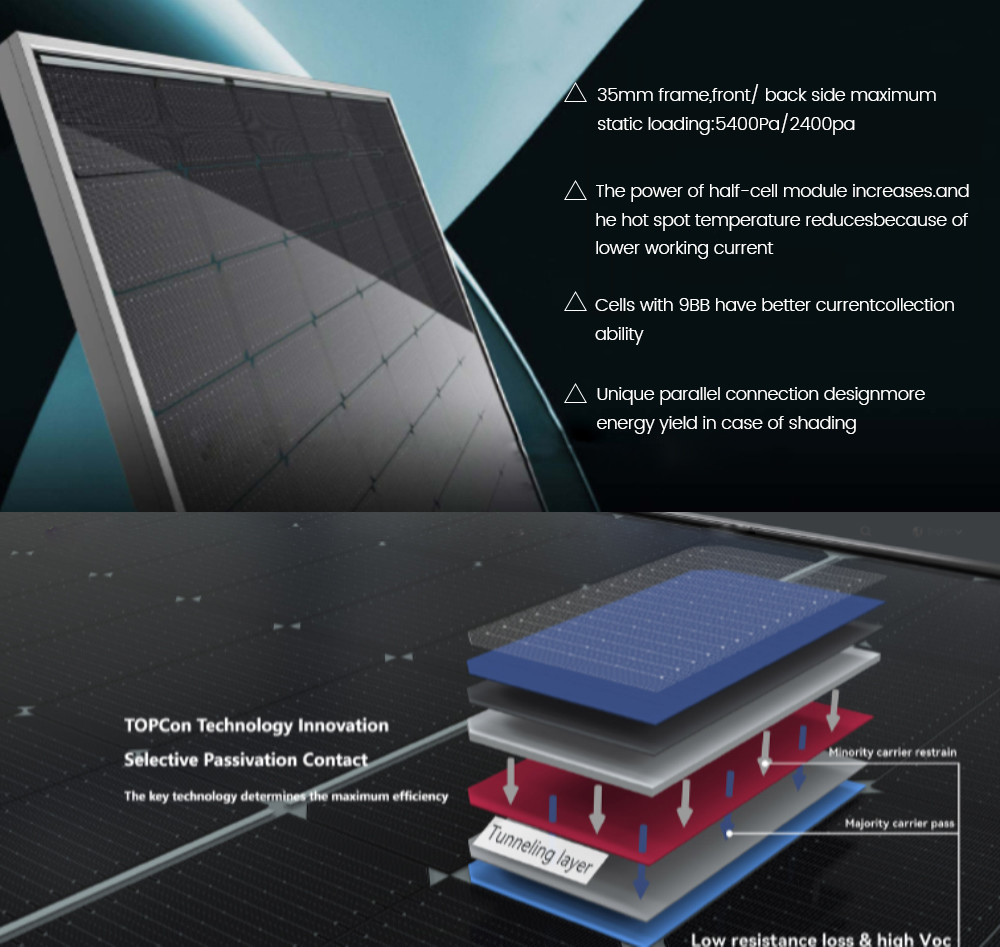

    TR technology + Half Cell

    TR technology with Half cell aims to eliminate the cell gap to increase module efficiency (mono-facial up to21.38%)


    Best Warranty

    12 year product warranty. 25 year linear power warranty


    9BB instead of 5BB

    9BB technology decreases the distance between bus bars and finger grid line which is benefit to power increase.


    Enhanced Mechanical Load

    Certified to withstand: wind load (2400 Pascal) and snowload (5400 Pascal).


    Higher lifetime Power Yield

    2% first year degradation,0.55% linear degradation


    Avoid debris, cracks and broken gate risk effectively

    9BB technology using circular ribbon that could avoid debris, cracks and broken gate risk effectively

    Jinko Tiger P-Type 78tr 470W 475W 480W 485W 490W Mono Photovoltaic Pv Jinko Solar Panels

    Jinko Tiger P-Type 78tr 470W 475W 480W 485W 490W Mono Photovoltaic Pv Jinko Solar Panels

    Jinko Tiger P-Type 78tr 470W 475W 480W 485W 490W Mono Photovoltaic Pv Jinko Solar Panels

    Jinko Tiger P-Type 78tr 470W 475W 480W 485W 490W Mono Photovoltaic Pv Jinko Solar Panels


    Cell Type
    P type Mono-crystalline
    No.of cells
    156 (2×78)
    Dimensions
    2182×1029×35mm (85.91×40.51×1.38 inch)
    Weight
    25kg (55.12 lbs)
    Front Glass
    3.2mm,Anti-Reflection Coating,
    High Transmission, Low Iron, Tempered Glass
    Frame
    Anodized Aluminium Alloy
    Junction Box
    IP68 Rated
    Output Cables
    TUV 1x4.0mm2
    (+): 290mm , (-): 145mm or Customized Length


    Jinko Tiger P-Type 78tr 470W 475W 480W 485W 490W Mono Photovoltaic Pv Jinko Solar Panels

    Jinko Tiger P-Type 78tr 470W 475W 480W 485W 490W Mono Photovoltaic Pv Jinko Solar PanelsJinko Tiger P-Type 78tr 470W 475W 480W 485W 490W Mono Photovoltaic Pv Jinko Solar PanelsJinko Tiger P-Type 78tr 470W 475W 480W 485W 490W Mono Photovoltaic Pv Jinko Solar Panels


    FAQ
    Q:Are you a factory or a trading company?
    A:We are a professional Solar Panels Manufacturer in China
    Q:How can we guarantee the products quality?
    A:Always provide the esteemed buyer a pre-production sample before mass production; Always testing every product before despatching the shipments;
    Q:What products we can supply you?
    A:Solar Panel,Inverter,Mounting System,Battery,Pv Cable,Distributor Box,Pv Connector,Etc

    Q:Can the products pricing be cheaper?
    A:Of course, you will be offered a a very good discount with large quantities.
    Q: Can print our company‘s logo on the pv panels?
    A:Yes! And we accept the OEM&ODM orders.
